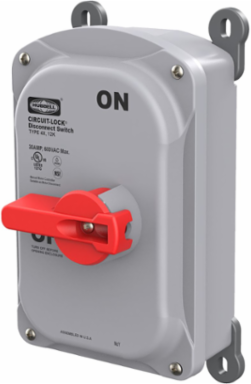

Hubbell Wiring Device-Kellems HBLDS30 Industrial Motor Disconnect Switch, 3 Pole, 30A 600V AC, IP69k, NEMA Type 4X

MPN: HBLDS30
UPC: 783585763002
PPN: HBL-HBLDS30
UNSPSC: 39121304

$476.51

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Industrial Grade, Motor Disconnect Switch, Unfused, 3 Pole, 30A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12 Non-Metallic Sloped Top Enclosure, cULus, NSF, CE, UL 508 / UL 60947-4-1A

Features

Constructed from corrosion and impact resistant UV stabilized non-metallic material+M4:T4
Rounded sloped top enclosure supports best practices in hygienic design by shedding dirt and debris
IP69k and Type 4X,12K water ingress protection and Certified by NSF for hygiene in food processing applications
Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements
Product rating are permanently laser-marked and will not wash off
Accepts up to 2 Auxiliary contacts(HBLAC1 and/or HBLAC2 ) or 3 when HBLAC11 is used with either a HBLAC1 or HBLAC2.

Specifications

Additional

Voltage	600 V AC RMS
Horsepower Maximum	15 HP
Operating Cycles	10,000 Cycles Minimum
Enclosure Type	IP69k and UL NEMA Type 4X, 12
Wire Size Range	#14 AWG to #8 AWG
Width	5.5 in
Weight	2.6 lb
Enclosure Material	Non-Metallic, Valoxae
Shaft Material	Valoxae
Certifications	cULus Listed, NSF, CE, UL 508, UL 60947-4-1A
Series	Non-Fused
Country of Origin	Poland

Amperage	30 A
Operating Temperature Range	-40C to 75C
Poles	3 Pole
Mounting Method	External fully adjustable feet
Height	4.12 in
Hub Size	3/4"
Material - Mounting Hardware	Stainless Steel Screw Mounting
Handle Material	Valoxae
Shape	Rounded Top
Dielectric Strength	Withstands 3000 V AC minimum
Color	Gray
