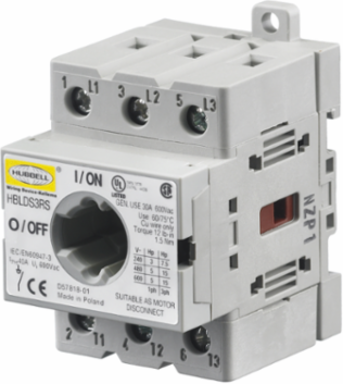

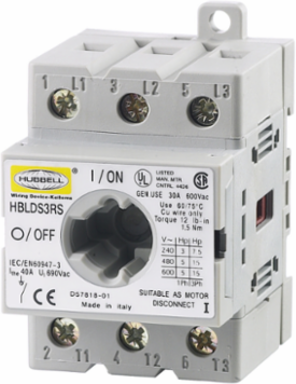

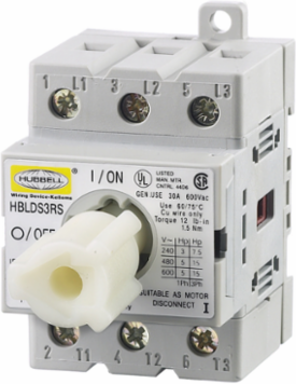

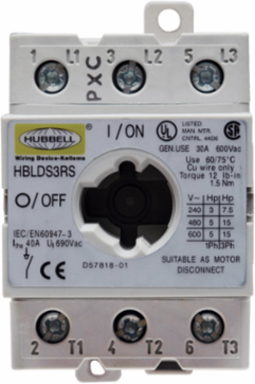

Hubbell Wiring Device-Kellems HBLDS3RS Industrial Grade Disconnect Switch, 30A Three Pole
- MPN: HBLDS3RS
- UPC: 783585955179
- PPN: HBL-HBLDS3RS
- UNSPSC: 39122205
CAD
$245.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Switches and Lighting Controls, Industrial Grade, Disconnect Switches, Replacement Switch, Three Pole, For 30A Black.
Features
- Industrial Grade
- Disconnect Switches
- Replacement Switch
- Three Pole
Documentation & Downloads
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- Improved Short Circuit Current Ratings (SCCR)
- General Literature Asset 3 Display Text
- Pulp & Paper Solutions
- Current / Amperage Rating
- 30 A
- Industry Standard(s)
- CSA Certified TYPE 4, 4X and TYPE 12K Enclosure Rating;Listed to UL Standard
- Standards - RoHS Compliance Status
- CM
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Type
- Accessories
- Dielectric Strength
- Withstands 3,000V minimum
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- D5485401
- Series
- Non-Fused;Fused
- BOX SIZE
- 8.250x10.200x9.400 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585955179
- Case Weight
- 4.974 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 41.500 in
- Pallet Weight
- 779.000 lb.
- NAICS Code
- 3353146111
General Literature Asset 2 Display TextIEC Pin & Sleeve Devices
Country of OriginPoland
Width2.600 in
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current voltage;Electrical - Dielectric Voltage - Withstands 3,000V Min;Electrical - Max. Working Voltage - 600V RMS;Electrical - Operations - Mechanical 10,000 cycles;Electrical 6,000 cycles;Environmental - Flammability - Meets UL 94V0 material classification;Environmental - Moisture Resistance - IP66 suitability;Environmental - Operating Temperature - Maximum continuous +75°C Minimum continuous -40°C;Environmental - UV Resistance - All exposed materials are UV stabilized;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - External full adjustable feet;Mechanical - Product Identification - Identification and ratings are part of the external label and receptacle face;Mechanical - Terminal Identification - In accordance with UL, CSA
Amperage Rating30 A
StandardCSA Certified TYPE 4, 4X and TYPE 12K Enclosure Rating;Listed to UL Standard
Weight0.4 lb.
StyleReplacement Switches
Description - InvoiceREP DISCO SWITCH, 30A,
Harmonization Code8536509901
MSDS FlagNo
Sub Class CodeA16A260
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.250 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585955178
Pallet Length48.000 in
Pallet Width40.000 in
