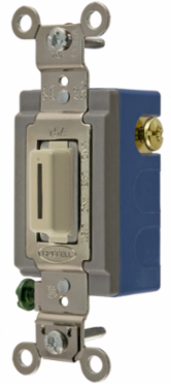

Hubbell Wiring Device-Kellems HBL1556LI Industrial Grade Locking Switch, 15A 120/277V AC, SPDT
Hubbell Wiring Device-Kellems HBL1556LI Industrial Grade Locking Switch, 15A 120/277V AC, SPDT
- MPN: HBL1556LI
- UPC: 783585188683
- PPN: HBL-HBL1556LI
- UNSPSC: 39122224
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$124.89/ EA
Description
Switches and Lighting Controls, Industrial Grade, Locking Switches, General Purpose AC, Momentary Single Pole Double Throw Center Off , 15A 120/277V AC, Terminal Screws Ivory Key Guide
Features
- Large brass binding head screws with deep slots
- Lock circuits On or Off
- Strip gauge for accurate wiring
- Momentary Contact
Specifications
Specifications
- Country of Origin
- CN
- Dimensions
- 4.06 in x 1.31 in x 1.89 in
- Height
- 1.89 in
- Length
- 4.06 in
- Temperature Rise - Max.
- 30°C maximum at rated current
- Amperage Rating
- 15 A
- Color
- Ivory
- Size
- 4.06 in x 1.31 in x 1.89 in
- Standard
- UL Listed
- Voltage Rating
- 120-277 VAC
- Width
- 1.31 in
- Dielectric Strength
- Withstands 1500V AC minimum for 1 minute
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Wire Size
- #14 AWG to #10 AWG
- Description - Invoice
- MOM TOG, 15A, 120/277V, SPDT, LK, IV
- Harmonization Code
- 8536509040
- MSDS Flag
- No
- Current Rating
- 15 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.4 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 10.000 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating15 A
Each - Width1.900 in
Industry Standard(s)UL Listed
PerformanceElectrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only
ActionSPDT
ApplicationBack and Side Wired
Contact ConfigurationMomentary
Special FeaturesMomentary Contact
TypeLocking
Voltage Rating Description120-277 VAC
ConnectivityBack and Side Wired
Number Of PolesSingle Pole
StyleSingle Pole Double Throw
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA16A240
SeriesExtra Heavy Duty
BOX SIZE3.600x10.000x4.400 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585188683
Case - Total Units50 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- No
