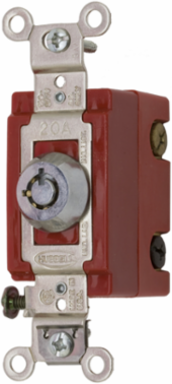

Hubbell Wiring Device-Kellems HBL1223RKL Industrial Grade Locking Switch, 20A 120/277V AC, 4.06 Inch x 1.25 Inch x 2.02 Inch
- MPN: HBL1223RKL
- UPC: 783585431994
- PPN: HBL-HBL1223RKL
- UNSPSC: 39122224
CAD
$279.29
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Switches and Lighting Controls, Industrial Grade, Barrel Key Locking Switch, General Purpose AC, Three Way, 20A 120/277V AC, Back and Side Wired, Chrome
Features
- Large brass binding head screws with deep slots
- Lock circuits On or Off
- Strip gauge for accurate wiring
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Dimensions | 4.06 in x 1.25 in x 2.02 in |
| Industry Standard(s) | UL Listed |
| Performance | Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Action | SPDT |
| Application | Back and Side Wired |
| Size | 4.06 in x 1.25 in x 2.02 in |
| Type | Locking |
| Voltage Rating Description | 120-277 VAC |
| Width | 1.25 in |
| General Literature Asset 2 Display Text | 2017 NEC® Code Changes Guide |
| Connectivity | Back and Side Wired |
| Number Of Poles | Single Pole |
| Style | Three Way |
| Class Code | A16 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A16A240 |
| Series | Extra Heavy Duty |
| BOX SIZE | 4.700x10.400x5.100 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585431994 |
| Case - Total Units | 40 EA |
| Each - Pack Description | Each |
| NAICS Code | 3359315101 |
| Current / Amperage Rating | 20 A |
|---|---|
| Height | 2.02 in |
| Length | 4.06 in |
| Temperature Rise - Max. | 30°C maximum at rated current |
| Amperage Rating | 20 A |
| Color | Chrome |
| Standard | UL Listed |
| Voltage Rating | 120-277 VAC |
| Weight | 0.2 lb. |
| General Literature Asset 1 Display Text | Healthcare Product Solutions |
| General Literature Asset 3 Display Text | Food Processing Guide |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Wire Size | #14 AWG to #10 AWG |
| Description - Invoice | 3 WAY TOG, IND GRD, 20A 120/277V, LOCK |
| Harmonization Code | 8536509040 |
| MSDS Flag | No |
| Current Rating | 20 A |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 3.7 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Case Weight | 15.450 lb. |
| Lowest Level UOM | Each |
