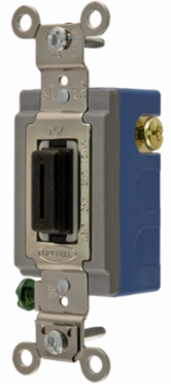

Hubbell Wiring Device-Kellems HBL1556L Industrial Grade Locking Momentary Switch 15A 120/277V AC
- MPN: HBL1556L
- UPC: 783585432809
- PPN: HBL-HBL1556L
- UNSPSC: 39122224
CAD
$132.40
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Switches and Lighting Controls, Industrial Grade, Locking Switches, General Purpose AC, Momentary Single Pole Double Throw Center Off , 15A 120/277V AC, Terminal Screws Black Key Guide
Features
- Large brass binding head screws with deep slots
- Lock circuits On or Off
- Strip gauge for accurate wiring
- Momentary Contact
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Dimensions | 4.06 in x 1.31 in x 1.89 in |
| Industry Standard(s) | UL Listed |
| Performance | Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only |
| Action | SPDT |
| Application | Back and Side Wired |
| Contact Configuration | Momentary |
| Special Features | Momentary Contact |
| Type | Locking |
| Voltage Rating Description | 120-277 VAC |
| Width | 1.31 in |
| Connectivity | Back and Side Wired |
| Number Of Poles | Single Pole |
| Style | Single Pole Double Throw |
| Class Code | A16 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | 1556L;HBL1556LCN |
| Current Rating | 15 A |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 2.4 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Case Weight | 12.900 lb. |
| Lowest Level UOM | Each |
| Current / Amperage Rating | 15 A |
|---|---|
| Height | 1.89 in |
| Length | 4.06 in |
| Temperature Rise - Max. | 30°C maximum at rated current |
| Amperage Rating | 15 A |
| Color | Black |
| Size | 4.06 in x 1.31 in x 1.89 in |
| Standard | UL Listed |
| Voltage Rating | 120-277 VAC |
| Weight | 0.2 lb. |
| Engineering Drawing 1 Display Text | HBL1556L AutoCAD Drawing |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Wire Size | #14 AWG to #10 AWG |
| Description - Invoice | MOM TOG, 15A, 120/277V, SPDT, LOCK |
| Harmonization Code | 8536509040 |
| MSDS Flag | No |
| Sub Class Code | A16A240 |
| Series | Extra Heavy Duty |
| BOX SIZE | 3.600x9.800x4.400 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585432809 |
| Case - Total Units | 50 EA |
| Each - Pack Description | Each |
| NAICS Code | 3359315101 |
