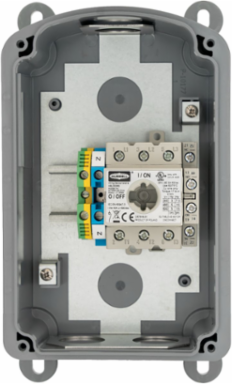

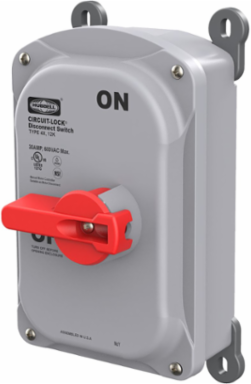

Hubbell Wiring Device-Kellems HBLDS30VFDNK Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 30A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12, Non-Metallic Sloped Top Enclosure, AC2 Aux Contact, No Knockout
- MPN: HBLDS30VFDNK
- UPC: 783585763071
- PPN: HBL-HBLDS30VFDNK
- UNSPSC: 39122205
CAD
$729.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 30A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12 Non-Metallic Sloped Top Enclosure, AC2 Aux Contact, No Lockout, cULus, NSF, CE, UL 508 / UL 60947-4-1A
Features
- Constructed from corrosion and impact resistant UV stabilized non-metallic material
- Rounded sloped top enclosure supports best practices in hygienic design by shedding dirt and debris
- IP69k and Type 4X,12K water ingress protection and Certified by NSF for hygiene in food processing applications
- Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements
- Product rating are permanently laser-marked and will not wash off
- Factory installed HBLAC2 auxiliary contact is "Break Before Main Break", 1 set of N/O contacts for VFD applications
Specifications
Key Specifications
- Country of Origin
- Poland
- Current / Amperage Rating
- 30 A
- Width
- 5.500 in
- Horsepower - Maximum
- 15
- Industry Standard(s)
- cULus Listed
- Mounting Method
- External fully adjustable feet
- Application
- Heavy Duty Industrial and/or Washdown
- Environmental Conditions
- Indoor and Outdoor
- Operating Temperature
- Without Impact Maximum continuous 75°C and minimum -40 °C
- Type
- Disconnect Switches
- General Literature Asset 1 Display Text
- Circuit-Lock® Rounded Sloped Top Motor Disconnects
- Enclosure Type
- IP69k and UL Type 4X, 12
- Style
- Heavy Duty
- Class Code
- A16
- Harmonization Code
- 8536509025
- Sub Class Code
- A16A260
- Series
- Non-Fused
- BOX SIZE
- 4.600x9.250x5.500 (in)
- Case Weight
- 2.690 lb.
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
ColorGray
Description - SlangIndustrial Grade, Motor Disconnect, Unfused, 3 Pole, 30A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12, Non-Metallic Sloped Top Enclosure, AC2 Aux Contact, No Knockout
Height4.12 in
Hub Size3/4"
Ingress ProtectionIP69k, NEMA Type 4X, 12
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current & voltage;Electrical - Dielectric Voltage - Withstands 3000V AC minimum;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V0 Classification;Environmental - Operating Temperature - Max Continuous 75°C,Min Continuous -40°C w/o impact;Environmental - UV Resistance - All materials are UV stabilized;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - Non-Metallic - External fully adjustable feet;Mechanical - Product Identification - Identification and ratings are part of external label;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
EnclosureIP69k and UL Type 4X, 12
Operating Cycles10,000 Cycles Minimum
StandardcULus Listed
Weight2.9 lb.
Dielectric StrengthWithstands 3000V AC minimum
ShapeRounded Top
Wire Size#14 AWG to #8AWG
Freight Class Code06168002
Image Actual Or RepresentativeA
Material - Mounting HardwareStainless Steel Screw Mounting
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783585763071
Pallet Height51.000 in
Pallet Weight1008.400 lb.
