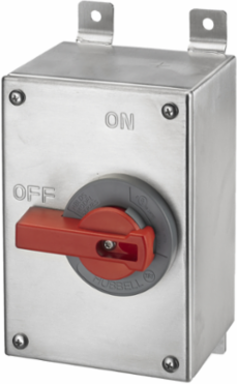

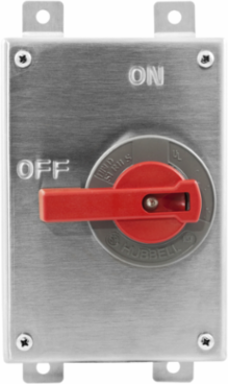

Hubbell Wiring Device-Kellems HBLDS6SS Industrial Grade 60A 600V AC Disconnect Switch, NEMA 4X, Stainless Steel
- MPN: HBLDS6SS
- UPC: 783585372563
- PPN: HBL-HBLDS6SS
- UNSPSC: 39122205
CAD
$1789.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Switches and Motor Controls, Industrial Grade, Disconnect Switches, Unfused Switch, Three Pole, 60A 600V AC, Screw Terminals, Stainless Steel, NEMA 4X Enclosure
Features
- Formed in nonporous 304 stainless steel
- IP69k and Type 4X,12K water ingress protection
- Certified by NSF for hygiene in food processing applications
- Highly visible red handle which meets OSHA Lockout/Tagout capabilities
- Accepts up to 2 Auxiliary contacts
Specifications
Key Specifications
- Country of Origin
- Poland
- Dimensions
- 11.63 in x 7.3 in x 5.39 in
- Industry Standard(s)
- UL Listed
- Mounting Method
- Feet are fixed
- Standards - RoHS Compliance Status
- CM
- Application
- Labelless
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Standard
- UL Listed
- Width
- 7.3 in
- General Literature Asset 1 Display Text
- Safety Product Guide
- General Literature Asset 3 Display Text
- Circuit-Lock® Motor Disconnects
- Enclosure Type
- Type 4X, IP69k
- Style
- Heavy Duty
- Description - Invoice
- DISCONNECT, 60A UNFUSED, 4X, SS
- Harmonization Code
- 8536509025
- MSDS Flag
- No
- Current Rating
- 60 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 10.550 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585372562
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating60 A
Height5.39 in
Length11.63 in
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current & voltage;Electrical - Dielectric Voltage - Withstands 3000V AC minimum;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V0 Classification;Environmental - Operating Temperature - Max Continuous 75°C,Min Continuous -40°C w/o impact;Environmental - UV Resistance - All materials are UV stabilized;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - Stainless Steel - Feet are fixed;Mechanical - Product Identification - Identification and ratings are part of external label;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
Amperage Rating60 A
EnclosureType 4X, IP69k
Size11.63 in x 7.3 in x 5.39 in
TypeDisconnect Switches
Engineering Drawing 1 Display TextHBLDS6SS AutoCAD Drawing
General Literature Asset 2 Display TextIndustrial Solutions
Dielectric StrengthWithstands 3000V AC minimum
ShapeSquare Top
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA16A260
SeriesNon-Fused
BOX SIZE7.900x13.200x9.500 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00783585372563
Case Weight10.550 lb.
Lowest Level UOMEach
Pallet Height47.400 in
Pallet Weight949.500 lb.
Certifications
- EU RoHS Indicator
- Yes
