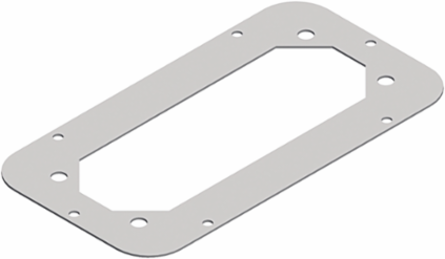

Schneider Electric NSYTLCFL PanelSeT S3D Enclosure Cable Gland Plate 245x130 mm, Steel, Grey RAL 7035
Schneider Electric NSYTLCFL PanelSeT S3D Enclosure Cable Gland Plate 245x130 mm, Steel, Grey RAL 7035
- MPN: NSYTLCFL
- PPN: SCH-NSYTLCFL
- UNSPSC: 39121302
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$18.45/ EA
Description
Standard cable gland plate for Spacial S3D/SF. L is 245 x W is 130 mm. Cable management accessory. Mounting on bottom of enclosure. Cable gland type is with FL cut-out. Number of cut-out is 1. For FL21 membranes part destination. Steel made, polyethylene (PE) foam for seal. Grey RAL 7035. Fixing elements, 1 plate, 1 separate gasket incl.
Features
- Allows the mounting of FL13 and FL21 membranes on every type of enclosure.
- Our membrane can be easily adapted to fit onto all our metal enclosures using the adapter plate.
- Ingress protection rating IP55 according to IEC 60529
- Material: Steel, structured finish RAL 7035 gray
Specifications
Physical Attributes
- Color
- plate Gray RAL 7035)
Enclosure Nominal Width300 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 1 plate, 1 separate gasket
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Cut Out Dimensions
- 194 x 62.5 mm
- Energy Efficiency Optimized
- False
- Number Of Cut Out
- 1 cut-out
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Sustainable Packaging
- No
- Accessory Separate Part Category2
- cable management accessory
- Medium Desc
- Standard for PanelSeT S3D encl. RAL7035, L245xW130
- Product Kit Identifier
- N
- Cable Gland Type
- with FL cut-out
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Materialplate steel, seal polyethylene (PE) foam
Local Publishable Date2025-09-16
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Device Applicationmulti-purpose
Mounting Locationenclosure bottom
Package Weight Lbs235.000 g
Product Or Component Typecable gland plate
RangePanelSeT
Surface Finishepoxy-polyester powder
Thickness1.5 mm
Accessory Separate Part Destination2for FL21 membranes
Stocking FlagY
Pep CodeENVPEP1001004EN
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1001004EN
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SVHCYes
Pep CodeENVPEP1001004EN
General Attributes
- Product Or Component Type
- cable gland plate
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Width
- 15.75 in
