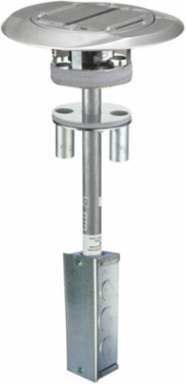

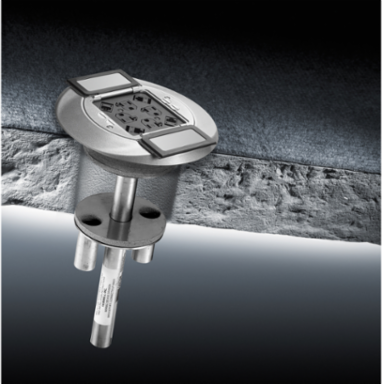

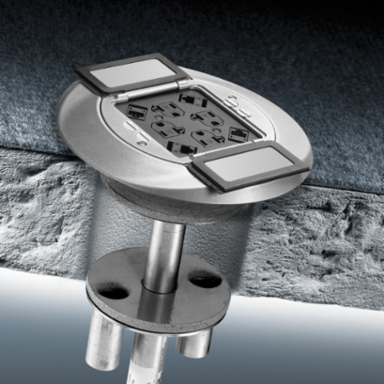

Hubbell Premise Wiring S1PT4X4ALJ Fire-Rated Poke-Through, 4 Inch, (4) 20A Receptacles, Aluminum Finish
- MPN: S1PT4X4ALJ
- UPC: 783585373034
- PPN: HBL-S1PT4X4ALJ
- UNSPSC: 39121328
CAD
$1326.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
In-Floor Delivery Systems, SystemOne, Fire-Rated Poke-Through, 1 Piece Unit, (4) 20A, 125V Receptacles, (4) Hubbell Keystone Openings, Junction Box, Cover with Aluminum Finish
Features
- Excellent solution for retrofit and new construction
- Assembly Includes FRPT, Cover Flange, Subplate and Junction Box
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Core Hole | 4 Inch |
| Industry Standard(s) | cULus Listed;Meets ADA Standards;UL 514A Listed |
| Finish | Aluminum |
| Number of Outlet | (4) 20A, 125V Receptacles, (4) Hubbell Keystone Openings |
| Finish Type | Aluminum |
| Style | FRPT - Complete Kits |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Material - Mounting Hardware | Step-Down Installation |
| BOX SIZE | 9.200x23.600x9.400 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585373034 |
| Case Weight | 6.700 lb. |
| Lowest Level UOM | Each |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Application - For Use On | Carpet |
|---|---|
| Width | 9.400 in |
| Plate Style | Data/Power |
| Knockouts | Cover- Dual Flip Covers; In Junction Box: Top: (1) 1", Bottom: (1) 3/4", Sides: (2) 1/2" and (1) 3/4" |
| Standard | cULus Listed;Meets ADA Standards;UL 514A Listed |
| Number Of Outlets | (4) 20A, 125V Receptacles, (4) Hubbell Keystone Openings |
| Description - Invoice | FRPT, 1 PIECE, 4X4, S1 AL FIN W/JBOX |
| Harmonization Code | 8536698000 |
| MSDS Flag | No |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 6.700 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 |
| Each - Pack Description | Each |
| Pallet Height | 51.000 in |
| Pallet Weight | 308.000 lb. |
| NAICS Code | 3359326106 |
