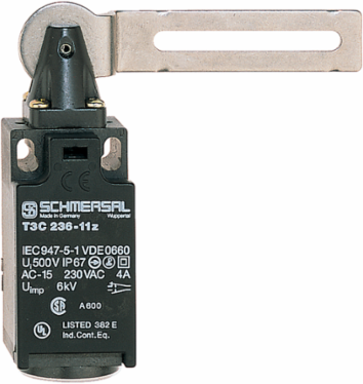

Schmersal 101108151 T4C 236-01Z Safety Switch, IP67, 30 mm x 161 mm, Double-Insulated
- MPN: 101108151
- PPN: SCM-101108151
CAD
$147.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
T4C 236-01Z Safety Switch, IP67, 30 mm x 161 mm, Double-Insulated
Features
- 1 Cable entry M 20 x 1.5
- Thermoplastic enclosure
- Double-insulated
- Good resistance to oil and petroleum spirit
- 30 mm x 88,5 mm x 30 mm
- Actuator heads can be repositioned by 4 x 90°
Documentation & Downloads
Specifications
Safety appraisal
- Standards
- BG-GS-ET-15 | EN ISO 13849-1 | EN 60947-5-1
Mission Time20 Year(s)
Electrical data
- Thermal test current
- 10 A
- Utilisation category DC-13
- 24 VDC

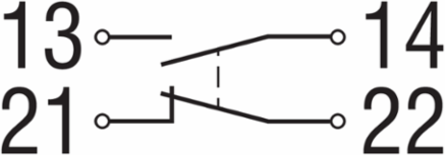

- Switching element
- Opener (NC)
- Switching frequency
- 5,000 /h
Utilisation category AC-154 A
Utilisation category DC-131 A
Switching principleCreep circuit element

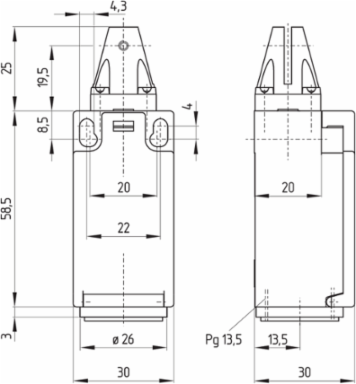

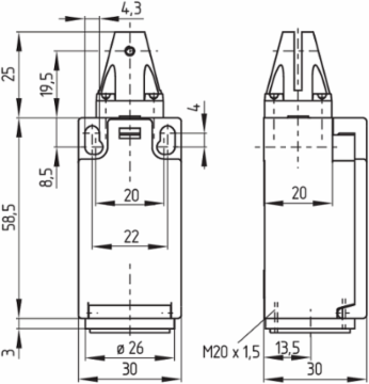

Mechanical data - Dimensions
- Length of sensor
- 30 mm
- Height of sensor
- 161 mm
Width of sensor30 mm

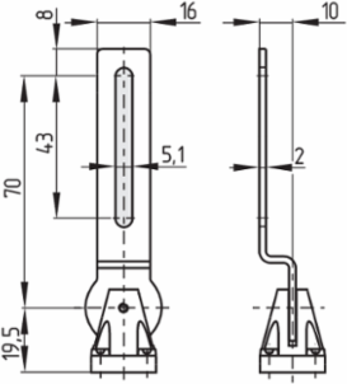

Height of the actuator78 mm
Safety appraisal - Safety outputs
- B10d Normally-closed contact (NC)
- 20,000,000 Operations
General data - Features
- Number of safety contacts
- 1
General data
- Enclosure material
- Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Material of the contacts, electrical
- Silver
Material of the actuatorStainless steel
Gross weight90 g
Ambient conditions
- Degree of protection
- IP67
- Ambient temperature, maximum
- +80 °C
Ambient temperature, minimum-30 °C
Mechanical data - Connection technique
- Terminal Connector
- Screw terminals M20 x 1.5
- Cable section, maximum
- 1 x 2.5 mm²
Cable section, minimum1 x 0.75 mm²
Note (Cable section)All indications about the cable section are including the conductor ferrules.
Mechanical data
- Actuating element
- Swivel lever
- Positive break angle
- 12.5 °
- Opening angle
- 2 x 90°
Mechanical life, minimum1,000,000 Operations
Positive break torque0.2 Nm
Approval - Standards
- Certificates
- cULus | CCC | EAC
