Schmersal 101182066 Hinge Safety Switch with Fixed Switching Angle, 141 mm x 115 mm x 21.5 mm, IP65
- MPN: 101182066
- PPN: SCM-101182066
CAD
$377.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

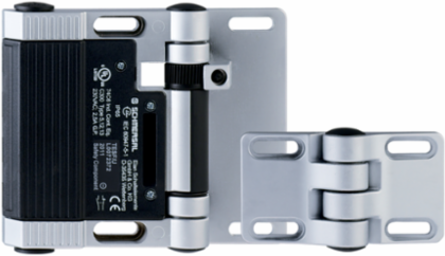

Hinge Safety Switch with Fixed Switching Angle, 141 mm x 115 mm x 21.5 mm, IP65
Features
- 2 cable entries M 16 x 1.5
- with fixed switching angle
- Metal enclosure
- Good resistance to oil and petroleum spirit
- For left or right hinged doors

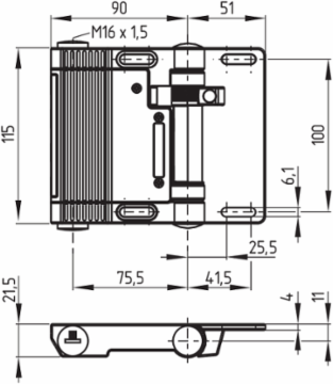

- 141 mm x 115 mm x 21,5 mm
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 2.5 A
- Utilisation category AC-15
- 2 A
- Utilisation category DC-13
- 1 A
- Switching principle
- Slow action
- Material of the contacts, electrical
- Silver-nickel alloy 10
Utilisation category AC-15230 VAC
Utilisation category DC-1324 VDC

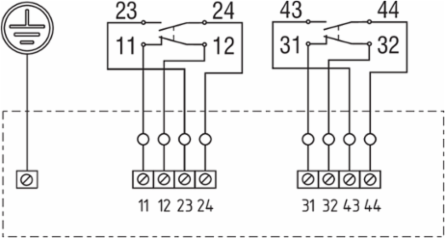

Switching elementNO contact, NC contact
Switching frequency1,200 /h
Note
- Note (General)

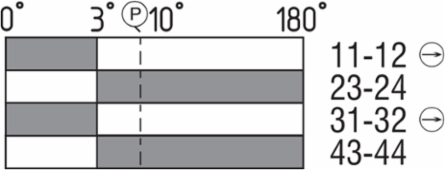

- Closed guard device = 0° in contact switch travel diagrams. | The factory-set switching angle is 3°. | Until the limit of the mechanical life has been reached the angle can increase up to 8° under normal wear-out conditions. | The positive break angle is 5°.
Mechanical data - Dimensions
- Length of sensor
- 21.5 mm
- Height of sensor
- 115 mm
Width of sensor141 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 250 VAC
Rated impulse withstand voltage U2.5 kV
Scope of delivery
- Scope of delivery

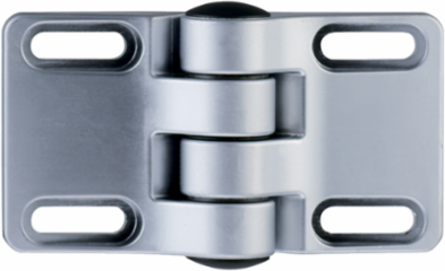

- Additional hinge
Safety classification - Safety outputs
- B
- 2,000,000 Operations
B1,000,000 Operations
General data - Features
- Mounting outside
- Yes
- Number of auxiliary contacts
- 2
Additional hingeYes
Number of safety contacts2
General data
- Standards
- BG-GS-ET-15 | EN IEC 60947-5-1
- Colour of the housing
- Black
Enclosure materialMetal, zinc die-cast
Gross weight840 g
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP65
Ambient temperature-25 ... +65 °C
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
- Cable section, maximum
- 1 mm²
Cable section, minimum0.5 mm²
Note (Cable section)All indications including the conductor ferrules.
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Opening angle
- 180°
Positive break angle14 °
Approvals - Standards
- Certificates
- cULus | CCC
