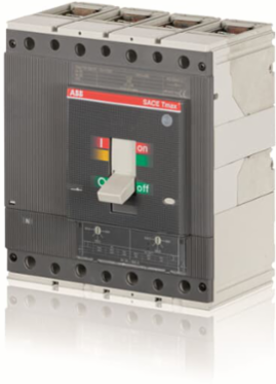

ABB 1SDA054532R1 T5V400 TMA400-4000 4pFFC1150VAC/DC N100%
- MPN: 1SDA054532R1
- UPC: 804325531252
- PPN: ABB-1SDA054532R1
- UNSPSC: 39121100
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
C.BREAKER TMAX T5V 400 1150V AC-1000V DC FIXED FOUR-POLE WITH FRONT TERMINALS FOR CABLE Cu AND THERMOMAGNETIC RELEASE TMA R 400-4000 A FULLY RATED NEUTRAL
Specifications
Additional Information
- Electrical Durability
- 7000 cycle60 cycles per hour
- Number of Poles
- 4
- Product Main Type
- SACE Tmax T
- Product Type
- Automatic Circuit Breaker
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Operational Voltage
- 1150 V AC1000 V DC
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 5 kA
- Rated Uninterrupted Current (Iu)
- 400 A
- Release Type
- TM
- Standards
- IEC
- Suitable For
- T5
- Terminal Connection Type
- Fixed Circuit-BreakersFront for Copper Cables
- Version
- F
Mechanical Durability20000 cycle120 cycles per hour
Power Lossat Rated Operating Conditions per Pole 19.5 W
Product NameMoulded Case Circuit Breaker
Rated Current (In)400 A
Rated Insulation Voltage (Ui)1150 V
Rated Service Short-Circuit Breaking Capacity (Ics)(1000 V AC) 10 kA(1150 V AC) 6 kA(1000 V DC) 10 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(1000 V AC) 20 kA(1150 V AC) 12 kA(1000 V DC) 40 kA
ReleaseTMA
Short-Circuit Performance LevelV
Sub-typeT5
Suitable for Product ClassMoulded Case Circuit Breakers
Test Voltage Max (Utest)3500 V
Dimensions
- Product Net Width
- 184 mm
- Product Net Depth / Length
- 103.5 mm
Product Net Height205 mm
Product Net Weight5.8 kg
Classifications
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Object Classification CodeQ
eClassV11.1 : 27370409
Environmental
- Environmental Information
- 9AKK10103A1056 9AKK108467A6707
- RoHS Information
- 9AKK108466A1424
REACH Declaration9AKK108466A1425
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Ordering
- Minimum Order Quantity
- 1 piece
Customs Tariff Number85352100
