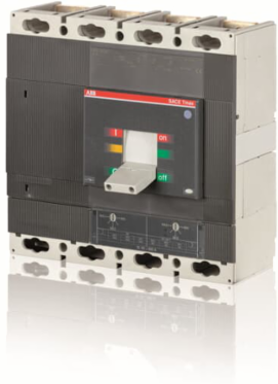

ABB 1SDA060315R1 T6L630 TMA630-6300 4pFF N100% 1000VAC/DC
ABB 1SDA060315R1 T6L630 TMA630-6300 4pFF N100% 1000VAC/DC
- MPN: 1SDA060315R1
- UPC: 804325509107
- PPN: ABB-1SDA060315R1
- UNSPSC: 39121100
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
C.BREAKER TMAX T6L 630 1000V AC-DC FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 630 I3=3150...6300 A FULLY RATED
Specifications
Additional Information
- Electrical Durability
- 7000 cycle60 cycles per hour
- Number of Poles
- 4
- Product Main Type
- SACE Tmax T
- Product Type
- Automatic Circuit Breaker
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Operational Voltage
- 1000 V AC1000 V DC
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (1000 V AC) 12 kA(1000 V DC) 50 kA
- Release
- TMA
- Short-Circuit Performance Level
- L
- Sub-type
- T6
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Test Voltage Max (Utest)
- 3500 V
Mechanical Durability20000 cycle120 cycles per hour
Power Lossat Rated Operating Conditions per Pole 30.6 W
Product NameMoulded Case Circuit Breaker
Rated Current (In)630 A
Rated Insulation Voltage (Ui)1000 V
Rated Service Short-Circuit Breaking Capacity (Ics)(1000 V AC) 6 kA(1150 V AC) 12.5 kA
Rated Uninterrupted Current (Iu)630 A
Release TypeTM
StandardsIEC
Suitable ForT6
Terminal Connection TypeFixed Circuit-BreakersFront
VersionF
Dimensions
- Product Net Width
- 280 mm
- Product Net Depth / Length
- 103.5 mm
Product Net Height268 mm
Product Net Weight12 kg
Classifications
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Object Classification CodeQ
eClassV11.1 : 27370409
Environmental
- Environmental Information
- 9AKK10103A1058 9AKK108467A6707
- RoHS Information
- 9AKK108466A1424
REACH Declaration9AKK108466A1425
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Ordering
- Minimum Order Quantity
- 1 piece
Customs Tariff Number85362090
