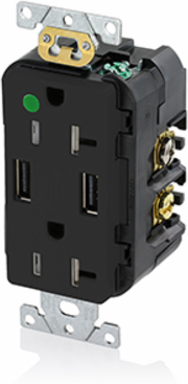

Leviton T5832-HGE Heavy-Duty Hospital Grade Tamper-Resistant USB Receptacle, 20 Amp, 125 Volt, NEMA 5-20R
- MPN: T5832-HGE
- UPC: 078477685570
- PPN: LEV-T5832-HGE
CAD
$27.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy-Duty Hospital Grade Tamper-Resistant USB Receptacle, 20 Amp, 125 Volt, NEMA 5-20R
Documentation & Downloads
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-1 & WD-6
Certification/ListingcCSAus, NOM-ANCE
Applicable StandardsUL 498 and 1310, CSA C22.2 Nos. 42 and 223
Material Specifications
- Ground Clips
- Brass
- Face Material
- PBT
- Strap Material
- Steel
- Body Material
- PBT Thermoplastic polyester resin
Line ContactsBrass
Terminal ScrewsSteel
Grounding ScrewSteel
Terminal ClampBrass
Mechanical Specifications
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Terminal Accom.
- 14-12 AWG
Product IDStamped on Strap
TerminationBack or Side Wire
Product Features
- Color
- Black
- Country Of Origin
- China
- NEMA
- 5-20R
Device TypeDuplex Receptacle Outlet
GradeHeavy-Duty Hospital Grade
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
Operating Temperature-10°C to 40°C
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per CSA
- Pole
- 2
- Grounding
- Self-Grounding
Wire3
Temperature RiseMax 30C after 100 cycles OL
Voltage125 VAC
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
