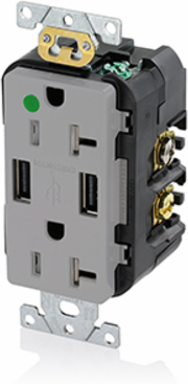

Leviton T5832-HGG Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Tamper-Resistant, with USB, Smooth Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Gray
Leviton T5832-HGG Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Tamper-Resistant, with USB, Smooth Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Gray
- MPN: T5832-HGG
- UPC: 078477685563
- PPN: LEV-T5832-HGG
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$27.86/ EA
Description
Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Tamper-Resistant, with USB, Smooth Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Gray
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-1 & WD-6
Certification/ListingcCSAus, NOM-ANCE
Applicable StandardsUL 498 and 1310, CSA C22.2 Nos. 42 and 223
Mechanical Specifications
- Termination
- Back or Side Wire
Product Features
- NEMA
- 5-20R
- Country Of Origin
- China
- Feature
- Tamper-Resistant, with USB, Smooth Face
ColorGray
GradeHeavy-Duty Hospital Grade
Device TypeDuplex Receptacle Outlet
Warranty
- Grade
- Heavy-Duty Hospital Grade
Warranty5-Year Limited
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
Operating Temperature-10°C to 40°C
Electrical Specifications
- Amperage
- 20 A
- Product ID
- Stamped on Strap
- Dielectric Voltage
- Withstands 2000V per CSA
- Terminal Screws
- Steel
- Strap Material
- Steel
- Grounding Screw
- Steel
- Body Material
- PBT Thermoplastic polyester resin
- Voltage
- 125 VAC
- Termination
- Back or Side Wire
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
Ground ClipsBrass
Face MaterialPBT
Wire3
Temperature RiseMax 30C after 100 cycles OL
Pole2
Line ContactsBrass
Terminal ClampBrass
GroundingSelf-Grounding
Terminal Accom.14-12 AWG
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
