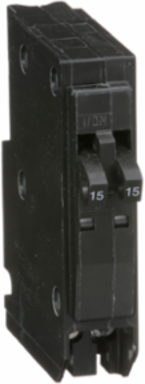

Square D QOT1515 QO Tandem Mini Circuit Breaker 2 Pole 15A 120/240V 10kA Plug-In
- MPN: QOT1515
- UPC: 785901418009
- PPN: SCH-QOT1515
CAD
$50.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO tandem mini circuit breaker has 2 one pole at 15A for 120/240VAC This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555 A full line of accessories are available. The box lugs will accept one 14 AWG to 8 AWG copper or 12 AWG to 8 AWG aluminum wire. This circuit breaker has a height of 3.22 inches, a width of 0.75 inch and a depth of 2.91 inches. QO tandem circuit breakers are UL Listed and CSA certified.
Features
- By packing two independent 15-amp single-pole breakers into a single 0.75-inch slot, this tandem (or piggyback) breaker lets you instantly expand your panel’s circuit capacity. This eliminates the massive expense of installing a brand-new subpanel or performing a complete service upgrade when adding new lighting or receptacle loads.
- Equipped with Schneider Electric's patented exclusive red Visi-Trip indicator window, you can instantly pinpoint the exact tripped circuit at a glance in a dark utility room. This eliminates the frustrating time spent guessing and manually testing toggles, accelerating diagnostic and restoration times.
- The heavy-duty pressure plate terminals accept wire sizes ranging from 14 AWG to 8 AWG for copper and 12 AWG to 8 AWG for aluminum conductors. This versatile mechanical connection ensures consistent torque performance, minimizing hot spots and preventing loose connections—a leading cause of electrical fires.
- Carrying a dual UL listing and CSA certification alongside a designated HACR (heating, air conditioning, and refrigeration) rating, this thermal-magnetic breaker safely handles the high inductive inrush currents of compressor and motor startups. You get verified 10 kAIC short-circuit interrupting protection, safeguarding your home's electronics from catastrophic overcurrent events.
Documentation & Downloads
Specifications
Additional
- Current Rating
- 15 A
- Interrupt Rating
- 10 kA 120/240 V AC 50/60 Hz
- Circuit Breaker Type
- Tandem
- Mounting Type
- Plug-in
- Height
- 82 mm (3.22 in)
- Depth
- 74 mm (2.91 in)
- Tightening Torque
- 2.8 N.m (24.78 lbf.in)
- Certifications
- UL Listed, CSA Certified
- Country of Origin
- Mexico
- Mercury Free
- Yes
- Halogen Content Performance
- Halogen free product
- Number of Spaces Required
- 1
- Reach Regulation
- Contains Substances of Very High Concern above threshold
Voltage Rating120/240 V AC
Poles1P
Circuit Breaker ApplicationHACR rated
Wire SizeAWG 14...AWG 8 copper, AWG 12...AWG 8 aluminum
Width19 mm (0.75 in)
Electrical ConnectionPressure plate
Net Weight0.145 kg
Ambient Temperature Rating40 °C (104 °F)
Range of ProductQO
ROHS CompliantCompliant with Exemptions
Toxic Heavy Metal FreeYes
Warranty18 months
