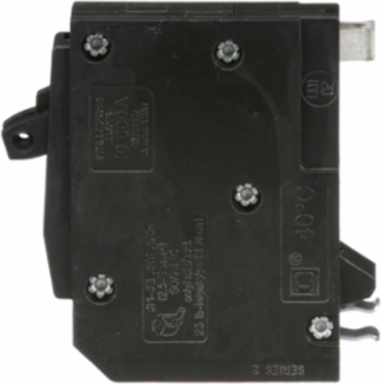

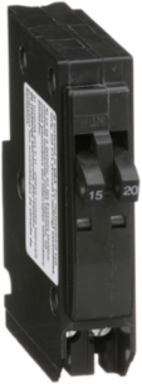

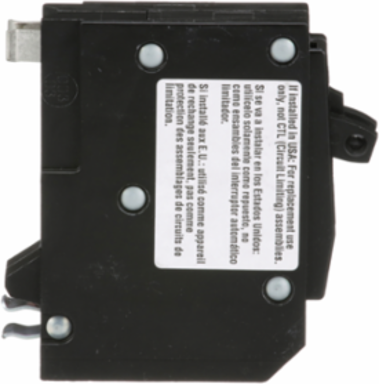

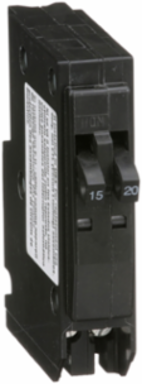

Square D QO1520 QO Tandem Mini Circuit Breaker 1 Pole at 15A & 1 Pole at 20A, 10kA, 120/240VAC
- MPN: QO1520
- UPC: 785901400929
- PPN: SCH-QO1520
CAD
$43.54
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Square D™ QO™ and QOB Miniature Circuit Breakers, QO1520, come in plug-in mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. Equipped with tandem HACR rated circuit breaker. UL listed CSA certified This QO tandem mini circuit breaker has 1 one pole at 15A and 1 one pole at 20A for 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Features
- Engineered as a "one-pole, two-circuit" breaker, the QO1520 allows you to run two separate 120V circuits while occupying only a single 3/4-inch space in your load center. This is the ultimate solution for homeowners and electricians looking to expand a crowded electrical panel for a basement finish or kitchen remodel without the massive expense of installing a new subpanel.
- This unique tandem configuration features one 15-amp pole and one 20-amp pole, providing the exact power required for mixed-use residential zones. Use the 15A side for standard lighting and bedroom outlets while utilizing the 20A side for high-draw appliances or garage power tools, ensuring high-performance protection tailored to your specific household demands.
- Equipped with high-quality pressure plate lugs, this breaker securely accepts copper wiring ranging from #14 AWG to #8 AWG. This wide-range compatibility ensures a tight, low-resistance connection for both standard 14-gauge lighting circuits and heavier 12-gauge or 10-gauge appliance runs, preventing the heat buildup and arcing associated with poor wire-to-breaker contact.
- Featuring Schneider Electric’s industry-leading Visi-Trip indicator, a high-visibility red flag appears in the breaker window the moment a fault occurs. This allows for instant identification of the tripped circuit among dozens of others, significantly reducing troubleshooting time and letting you safely reset your power with total confidence.
- Designed with the iconic QO "Plug-On" attachment, this breaker snaps directly onto the bus bar of any QO-compatible panel or CSED. The secure, cam-action connection provides superior mechanical and electrical stability compared to standard "bolt-on" or generic "twin" breakers, maintaining the integrity of your Square D system and ensuring your installation stays fully UL-listed and code-compliant.
Documentation & Downloads
Specifications
Additional
- Current Rating
- 15 A, 20 A
- Interrupt Rating
- 10 kA
- Ambient Rating
- 40 °C
- Breaking Capacity
- 10 kA 120/240 V AC 50/60 Hz
- Ambient Air Temperature For Operation
- 40 °C
- Wire Size
- AWG 14 to AWG 8 copper or aluminum
- Dimensions (HxWxD)
- 82 mm x 19 mm x 74 mm
- Electrical Connection
- box lugs
- Depth
- 74 mm
- Number Of Spaces Required
- 1
- RoHS Exemption
- Yes
- Mercury Free
- Yes
- Reach Regulation
- Substances of Very High Concern above threshold
- Product Or Component Type
- miniature circuit-breaker
- Sustainable Offer Status
- Green Premium product
Voltage120/240 V AC
Circuit Breaker TypeTandem
Poles Description1P
Circuit Breaker ApplicationHACR rated
Mounting TypePlug-in
Tightening Torque2.8 N.m
Net Weight0.159 kg
Height82 mm
Width19 mm
CertificationsUL Listed, CSA Certified
Halogen ContentHalogen free
China RoHSOut of scope
Toxic Heavy Metal FreeYes
Range Of ProductQO
