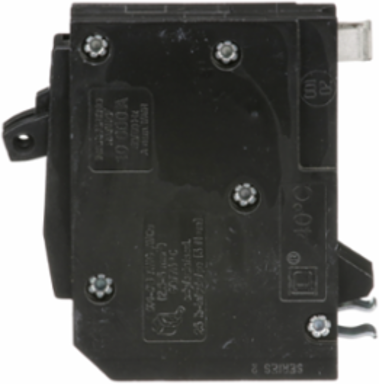

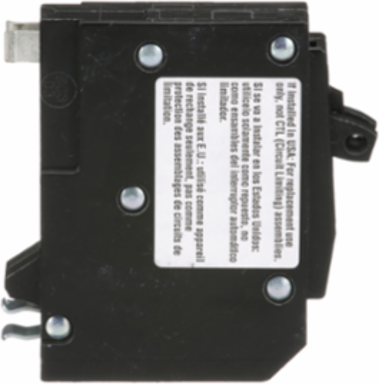

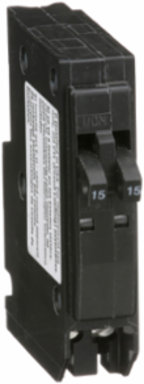

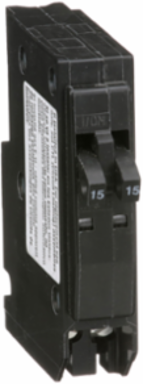

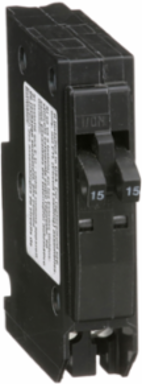

Square D QO1515 Tandem Mini Circuit Breaker 15A 120/240VAC 10kA Plug-In Mount
- MPN: QO1515
- UPC: 785901400905
- PPN: SCH-QO1515
CAD
$41.55
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO tandem miniature breaker is rated as 15 A and 15 A, 12/24 V, and 1 pole. This unit provides 1 kA breaking capacity and plug-on mounting. A full line of factory installed accessories is also available such auxiliary switches, alarm switches, and shunt trips. This unit is compatible with plug-on neutral system. QO breakers use a compact 3/4 inch width design for small system footprint. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555 QO-colour {}-[In] rated current 20 A-[Ue] rated operational voltage {"1" 2018-04-13 05:14:57,"2" 2018-04-13 05:14:57,"3" 2018-04-13 05:14:57}-mounting mode plug-in-poles description 2P-Range Presentation
Features
- The QO1515 is a single-pole tandem circuit breaker that provides two independent 15-Amp circuits while occupying only one 3/4-inch space in your panel. It is the ideal solution for adding a new circuit to a crowded panelboard without the expense of a sub-panel or a full panel upgrade.
- This breaker features a specific mounting cam (slot) that limits its installation to QO load centers designed to accept tandem breakers. Usually, these panels have "notched" bus bars in specific positions. It is strictly for the Square D QO (Premium) line and will not fit Homeline, Eaton, or Siemens panels.
- Despite its compact size, the QO1515 includes the patented Visi-Trip red indicator for both circuits. If either 15-Amp circuit trips due to an overload or short circuit, a red flag appears in the corresponding window, allowing you to pinpoint the faulted circuit instantly among a sea of black handles.
- Each half of the tandem is rated for 120V AC and features a 10,000 AIR (Amperes Interrupting Rating). It is SWD (Switch Duty) rated, making it suitable for switching fluorescent or LED lighting loads, and HACR rated for use with heating, air conditioning, and refrigeration equipment.
- The breaker is equipped with two separate pressure plate terminals that accept #14 to #8 AWG copper or aluminum wire. Because it provides two circuits in one slot, ensure your panel's neutral bar has enough open terminals to accommodate the two separate neutral wires required for these circuits.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 15 A
- Breaking Capacity
- 10 kA 120/240 V AC 50/60 Hz
- Application
- HACR rated
- Mounting Type
- Plug-in
- Electrical Connection
- Box lugs
- Tightening Torque
- 4 N·m (35.4 lbf·in)
- Width
- 19 mm (0.75 in)
- Net Weight
- 0.127 kg (0.28 lb)
- Halogen Content Performance
- Halogen free product
- Mercury Free
- Yes
- Toxic Heavy Metal Free
- Yes
Rated Operational Voltage120/240 V AC
Ambient Temperature Rating40 °C (104 °F)
Number of Poles1P
Circuit Breaker TypeTandem
Wire SizeAWG 14...AWG 8 copper or aluminum
Height82 mm (3.23 in)
Depth74 mm (2.91 in)
RoHS ComplianceCompliant with Exemptions
Product CertificationsUL Listed, CSA Certified
REACH ComplianceContains SVHC above threshold
