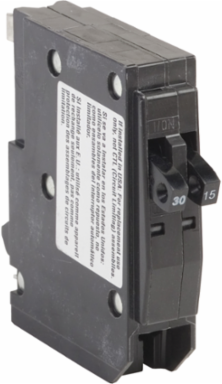

Square D QO3015 Tandem mini circuit breaker, QO, 1 x 1 pole at 30A, 1 x 1 pole at 15A, 120/240VAC, 10kA, plug in mount
Square D QO3015 Tandem mini circuit breaker, QO, 1 x 1 pole at 30A, 1 x 1 pole at 15A, 120/240VAC, 10kA, plug in mount
- MPN: QO3015
- UPC: 785901413004
- PPN: SCH-QO3015
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$54.18/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO tandem mini circuit breaker has 1 one pole at 30A and 1 one pole at 15A for 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Specifications
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Eu Rohs Directive
- Compliant with Exemptions
- Halogen Content Performance
- Halogen free product
Circularity ProfileN/A
Mercury FreeYes
Toxic Heavy Metal FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- Height
- 82 mm
- Tightening Torque
- 2.8-2.8 N.m
- Awg Gauge
- AWG 14...AWG 8 copper or aluminum
- Depth
- 74 mm
Breaking Capacity10 kA 120/240 V AC 50/60 Hz
Number Of Spaces Required1
Width19 mm
Net Weight0.145 kg
Specifications
- Circuit Breaker Application
- HACR rated
- Circuit Breaker Type
- tandem
- Poles Description
- 1P
- [In] Rated Current
- 15 A || 30 A
- [Ue] Rated Operational Voltage
- 120/240 V AC
Mounting Modeplug-in
Range Of ProductQO
Electrical Connectionbox lugs
Product Or Component Typeminiature circuit-breaker
Environment
- Product Certifications
- UL listed || CSA
Ambient Air Temperature For Operation40 °C
