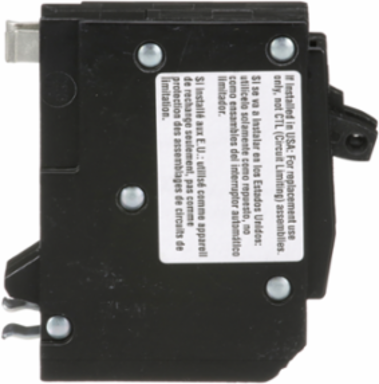

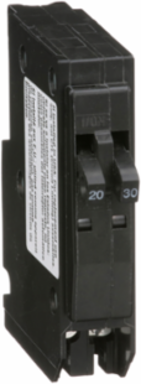

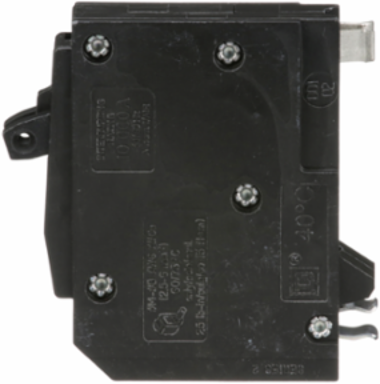

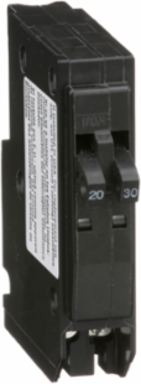

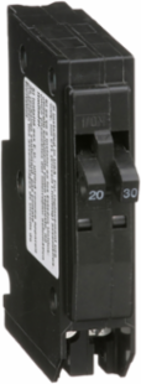

Square D QO2030 Tandem mini circuit breaker, QO, 1 x 1 pole at 20A, 1 x 1 pole at 30A, 120/240VAC, 10kA, plug in mount
Square D QO2030 Tandem mini circuit breaker, QO, 1 x 1 pole at 20A, 1 x 1 pole at 30A, 120/240VAC, 10kA, plug in mount
- MPN: QO2030
- UPC: 785901001010
- PPN: SCH-QO2030
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$54.18/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO tandem mini circuit breaker has 1 one pole at 20A and 1 one pole at 30A for 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555 QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Specifications
Complementary
- Height
- 82 mm
- Number Of Spaces Required
- 1
- Breaking Capacity
- 10 kA 120/240 V AC 50/60 Hz
- Width
- 19 mm
Tightening Torque2.8-2.8 N.m
Net Weight0.150 kg
Awg GaugeAWG 14...AWG 8 copper or aluminum
Depth74 mm
Specifications
- Circuit Breaker Type
- tandem
- Product Or Component Type
- miniature circuit-breaker
- Mounting Mode
- plug-in
- Electrical Connection
- box lugs
- [Ue] Rated Operational Voltage
- 120/240 V AC
Range Of ProductQO
Circuit Breaker ApplicationHACR rated
Poles Description1P
[In] Rated Current30 A || 20 A
Offer Sustainability
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- N/A
- Halogen Content Performance
- Halogen free product
Mercury FreeYes
Toxic Heavy Metal FreeYes
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
Environment
- Product Certifications
- UL listed || CSA
Ambient Air Temperature For Operation40 °C
