ABB TEF5-ON ON-Delay Electronic Timer, 2 Poles, 1200 cycles/hour Max Switching Frequency
- MPN: TEF5-ON
- UPC: 888614111462
- PPN: ABB-TEF5-ON
- UNSPSC: 39121523
CAD
$272.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

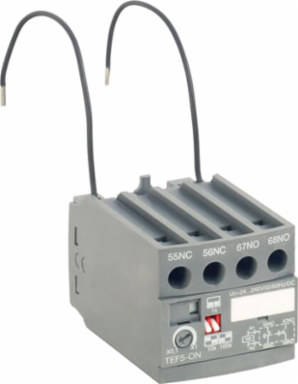

TEF5-ON Frontal Electronic Timer
Specifications
Dimensions
- Product Net Width
- 44 mm
- Product Net Height
- 40.5 mm
Product Net Depth / Length62.5 mm
Product Net Weight0.065 kg
Technical
- Maximum Electrical Switching Frequency
- (AC-15) 1200 cycles per hour(DC-13) 900 cycles per hour
- Mounting Position
- Acc. to mounting positions permitted on contactors or contactor relays With AL, TAL contactors or NL, TNL contactor relays: mounting position 5 not permitted.
- Number of Auxiliary Contacts NO
- 1
- Power Loss
- at 3 A per Pole 0.1 W
- Rated Impulse Withstand Voltage (Uimp)
- 4 kV
- Rated Operational Current AC-15 (Ie)
- (24 / 127 V) 3 A(220 / 240 V) 1.5 A
- Rated Operational Voltage
- Auxiliary Circuit 240 V AC
- Standards
- IEC/EN 60947-5-1, UL 508, CSA C22-2 No. 14-18
- Terminal Type
- Screw Terminals
- Timer Relay Type
- ON-Delay
Maximum Mechanical Switching Frequency3600 cycles per hour
Number of Auxiliary Contacts NC1
Number of Poles2
Rated Frequency (f)Auxiliary Circuit 50 / 60 Hz
Rated Insulation Voltage (Ui)acc. to IEC 60947-5-1 400 Vacc. to UL/CSA 300 V
Rated Operational Current DC-13 (Ie)(24 V) 1 A / 24 W
Rated Short-time Withstand Current Low Voltage (Icw)for 0.1 s 8 Afor 1 s 8 A
Suitable ForGA75GAE75UA16UA26UA30UA50UA63UA75AX06AX09AX12AX18AX25AX32AX40AX50AX65AX80
Tightening TorqueAuxiliary Circuit 1 N·m
Classifications
- eClass
- V11.0 : 27371308
- ETIM 9
- EC002060 - Timer block
- Object Classification Code
- K
E-Number (Finland)2712547
IDEA Granular Category Code (IGCC)4746 >> Timer controls
Environmental
- Ambient Air Temperature
- Close to Contactor for Storage -40 ... +80 °COperation -25 ... +70 °C
- Conventional Free-air Thermal Current (Ith)
- acc. to IEC 60947-5-1, Θ = 40 °C 5 A
- Maximum Operating Altitude Permissible
- Without Derating 2000 m
- WEEE B2C / B2B
- Business To Business
Climatic WithstandCategory B according to IEC 60947-1 Annex Q
Degree of Protectionacc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
RoHS Information2CMT2021-006277
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Technical UL/CSA
- Tightening Torque UL/CSA
- Auxiliary Circuit 9 in·lb
Ordering
- Minimum Order Quantity
- 1 piece
- Product Main Type
- Accessories for Block Contactors
Customs Tariff Number85389091
