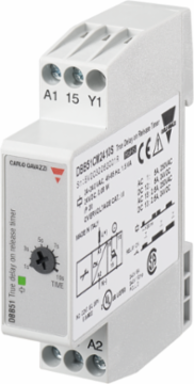

Carlo Gavazzi DBB51CM2410M Timer True delay on release - Timer True delay on release, DIN rail mount, 17,5x81x67,2mm housing, adjustable time settings 60s - 600s, Supply voltage 24-240Vac and 24Vdc, Screw terminals connection, 5A SPDT relay output

Timer True delay on release - Timer True delay on release, DIN rail mount, 17,5x81x67,2mm housing, adjustable time settings 60s - 600s, Supply voltage 24-240Vac and 24Vdc, Screw terminals connection, 5A SPDT relay output

Carlo Gavazzi DBB51CM2410M Timer True delay on release - Timer True delay on release, DIN rail mount, 17,5x81x67,2mm housing, adjustable time settings 60s - 600s, Supply voltage 24-240Vac and 24Vdc, Screw terminals connection, 5A SPDT relay output

MPN: DBB51CM2410M
PPN: CLG-DBB51CM2410M

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$156.43/ EA

Loading add to cart quantity...

Description

Timer True delay on release - Timer True delay on release, DIN rail mount, 17,5x81x67,2mm housing, adjustable time settings 60s - 600s, Supply voltage 24-240Vac and 24Vdc, Screw terminals connection, 5A SPDT relay output

Specifications

Specifications

Type of electric connection: Screw connection

Function delay on de-energization: Yes

Function floating contact on de-energization: No

Function pulse shaping: No

Function flashing, starting with pulse, fixed time: No

Clock function, starting with pulse, variable: No

Remote operation possible: No

Pluggable on auxiliary contact block: No

Rated control supply voltage Us at AC 60HZ: Min.20.4-Max.264

Voltage type for actuating: AC/DC

Number of outputs, delayed, change-over contact: 1

With semiconductor output: No

Suitable for front mounting: No

Height: 81

With approval according to UL: Yes

Wall mounting/direct mounting: No

Degree of protection (IP): IP20

Function delay-on energizationNo

Function floating contact on energizationNo

Function star-deltaNo

Function flashing, starting with pause, fixed timeNo

Clock function, starting with pause, variableNo

With plug-in socketNo

Suitable for remote controlNo

Rated control supply voltage Us at AC 50HZMin.20.4-Max.264

Rated control supply voltage Us at DCMin.20.4-Max.27.6

Time rangeMin.60-Max.600

Outputs, reversible delayed/undelayedNo

Suitable for DIN rail (top hat rail) mountingNo

Width17.5

Depth67.2

Rail mounting possibleYes

Front build in possibleNo
