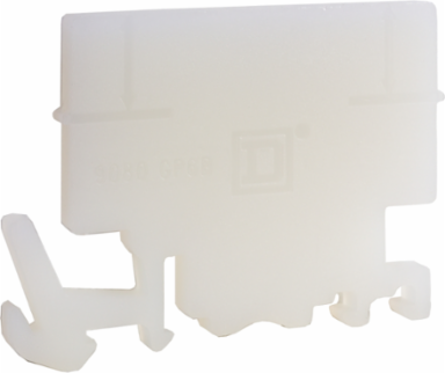

Square D 9080GP6B Linergy Terminal Block End Barrier, Nylon, 1.33 Inch Height, 1.8 Inch Width
- MPN: 9080GP6B
- UPC: 785901155362
- PPN: SCH-9080GP6B
CAD
$2.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Linergy NEMA sectional terminal blocks are for terminating wire and are designed to NEMA standards. This end barrier is used to cover the open side of the 9080GA6 or 9080GP6 terminal block. An end barrier is required at the end of all assemblies of 9080GA6 or 9080GP6 block to meet the UL component recognition and CSA certification requirements. The nylon end barrier is molded in the natural color of nylon (off white).
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico, United States |
|---|
| Depth | 0.12 in |
|---|
Physical Attributes
| Color | natural |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Mounting Support | 9080GH track, 35 mm DIN rail |
| Local Publishable Date | 2026-07-03 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1918 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | set of 10 |
| Returnability | Yes |
| Height Nominal | 1.33 in |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538906000 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Material | nylon |
| Product Or Component Type | End Barrier |
| Range Of Product | 9080G |
| Sustainable Packaging | No |
| Width Nominal | 1.8 in |
| Package Weight(Lbs) | 4.5 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Ambient Air Temperature For Operation | -40-257 °F, -40-257 °F |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | End Barrier |
|---|
| Range Of Product | 9080G |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
