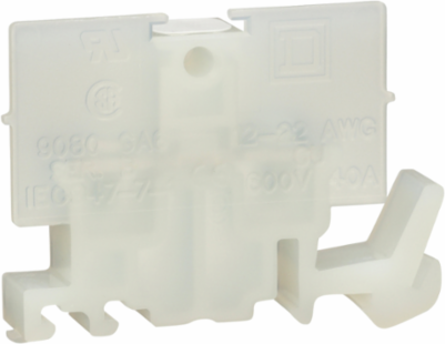

Square D 9080GA6 Terminal Block, 40A, 600V, Natural Color, Dimensions: 1.8 in W x 1.48 in H
Square D 9080GA6 Terminal Block, 40A, 600V, Natural Color, Dimensions: 1.8 in W x 1.48 in H
- MPN: 9080GA6
- UPC: 785901154952
- PPN: SCH-9080GA6
- UNSPSC: 39121410
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$4.25/ EA
Description
Square D 2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. Starters can be locked in the Off or Stop position to prevent inadvertent operation. Pilot lights and auxiliary contacts are field addable. Overload heater elements are ordered separately to match motor data. A variety of enclosures are available. Starters are UL Listed and CSA Certified for global applications.
Features
- Natural colored block, 40 amp, flat terminal connector
- Meets a wide variety of application requirements
- Offers labor savings with easy wiring requiring a standard screwdriver
Specifications
Physical Attributes
- Color
- natural
Conformance Attributes
- Product Certifications
- CE, UL recognized E60616 CCN XCFR2, CSA file 62144 class 6228 01
Complementary Attributes
- Line Rated Current
- 40-40 A UL, 40-40 A CSA
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mounting Support
- 9080GH track, 35 mm DIN rail
- Local Publishable Date
- 2025-11-13
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant
- China ROHS In Scope
- No
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Function Option
- Standard
- Electrical Connection
- ring tongue
- Package Weight Lbs
- 9.1 g
- Product Or Component Type
- terminal block
- Quantity Per Set
- set of 50
- Returnability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Connections Terminals
- screw terminal zinc plated steel 18-20 lbf.in : AWG 22...AWG 12 copper)
- Stocking Flag
- N
- Localisation On Device
- standard
- Global Commercial Status
- Commercialised
- Ue Rated Operational Voltage5
- 600 V AC/DC
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Legacy WEEE ScopeIn
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdCOMPLIANT
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
AWG GaugeAWG 22...AWG 12 copper
Energy Efficiency OptimizedFalse
Product AvailabilityStock - Normally stocked in distribution facility
Protection Typefingersafe DIN 57470
Range Of Product9080G
Sustainable PackagingNo
Ue Rated Operational Voltage2600 V AC/DC
Medium DescTerminal block, Linergy, flat terminal connector, natural colored block, 40A, 600V
Product Kit IdentifierN
Number Of Terminal Blocks32 per foot
Connections Terminals3screw terminal zinc plated steel 18-20 lbf.in : AWG 22...AWG 12 copper)
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Compliant
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Ambient Air Temperature For Operation
- -40-257 °F
- Packaging Without Single Use Plastic
- Yes
- Reach Free Of SVHC
- Yes
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Product CompatibilityGP6B
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- terminal block
Range Of Product9080G
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 0.37 in
