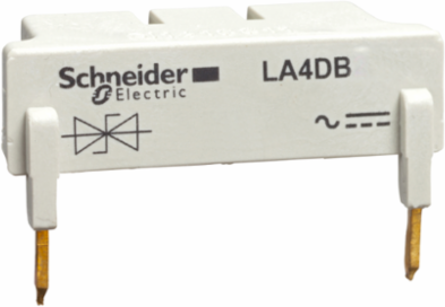

Schneider Electric LA4DB3S TeSys Deca, suppressor module, bidirectional peak limiting diode, 72V DC

TeSys Deca, suppressor module, bidirectional peak limiting diode, 72V DC
  • MPN: LA4DB3S
  • PPN: SCH-LA4DB3S

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$68.18/ EA

Description

TeSys D suppressor module, for LC1D80-D95 (3P), LP1D40-D80 (4P) contactors. To be used with 72V DC control circuit voltage, it provides bidirectional peak limiting diodes protection limiting the transient voltage to 2 Uc max. Mounting on top of contactor, screw fixing and connection on coil terminals. Green Premium compliant (RoHS/REACh).

Specifications

Environment

Product Certifications
UL || CSA
Standards
IEC 60947-5-1 || EN 60947-5-1 || CSA C22.2 No 60947-5-1 || UL 60947-5-1 || GB/T 14048.5
Ambient Air Temperature For Storage
-40-80 °C
Ambient Air Temperature For Operation-25-55 °C
Ip Degree Of ProtectionIP2XIEC 60529

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP111253EN
Toxic Heavy Metal Free
Yes
Reach Free Of Svhc
Yes
China Rohs Regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs Directive
Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A

Complementary

[Uc] Control Circuit Voltage
72 V DC
Mounting Location
top
Mounting Mode
by screws
Net Weight0.018 kg
Maximum Peak Voltage2 Uc
Suppressor Technologybidirectional peak limiting diode

Specifications

Product Or Component Type
suppressor module
Product Compatibility
4P LP1D80 || 3P LC1D80...D95 || 4P LP1D40...D65
RangeTeSys
Device Short NameLA4D
