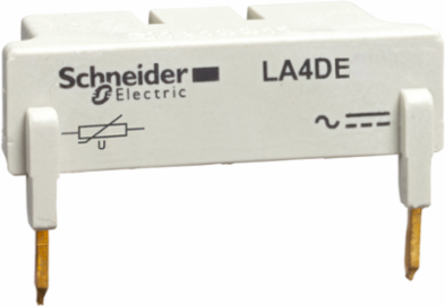

Schneider Electric LA4DE2E TeSys Deca Suppressor Module, 24-48V AC, Varistor Technology

MPN: LA4DE2E
PPN: SCH-LA4DE2E

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$82.18/ EA

Qty:

Loading add to cart quantity...

Description

TeSys D suppressor module, for LC1D80-D150 (3P), LC1D80-D115 (4P) contactors. To be used with 24-48V AC control circuit voltage, it provides varistor protection limiting the transient voltage to 2 Uc max. Mounting on top of contactor, screw fixing and connection on coil terminals. Green Premium compliant (RoHS/REACh).

Specifications

Environment

Product Certifications: UL || CSA

Standards: IEC 60947-5-1 || EN 60947-5-1 || CSA C22.2 No 60947-5-1 || UL 60947-5-1 || GB/T 14048.5

Ambient Air Temperature For Storage: -40-80 °C

Ambient Air Temperature For Operation-25-55 °C

Ip Degree Of ProtectionIP2XIEC 60529

Contractual warranty

Warranty: 18 months

Offer Sustainability

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP111253EN

Toxic Heavy Metal Free: Yes

Reach Free Of Svhc: Yes

China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)

Eu Rohs Directive: Compliant

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Reach RegulationFree of Substances of Very High Concern above the threshold

WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Circularity ProfileN/A

Complementary

[Uc] Control Circuit Voltage: 24...48 V AC

Mounting Location: top

Mounting Mode: by screws

Net Weight0.018 kg

Maximum Peak Voltage2 Uc

Suppressor Technologyvaristor (peak limiting)

Specifications

Product Or Component Type: suppressor module

Product Compatibility: 4P LC1D80...D115 || 3P LC1D80...D115

RangeTeSys

Device Short NameLA4D
