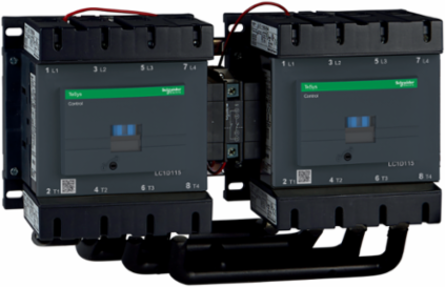

Schneider Electric LC2D115004M7 Changeover Contactor, TeSys Deca, 4P(4NO), AC-1, <= 440V 200A, 220V AC coil
Schneider Electric LC2D115004M7 Changeover Contactor, TeSys Deca, 4P(4NO), AC-1, <= 440V 200A, 220V AC coil
- MPN: LC2D115004M7
- PPN: SCH-LC2D115004M7
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2490.38/ EA
Description
Changeover Contactor, TeSys Deca, 4P(4NO), AC-1, <= 440V 200A, 220V AC coil
Specifications
Environment
- Mechanical Robustness
- vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor closed15 Gn for 11 ms || shocks contactor open6 Gn for 11 ms
- Height
- 158 mm
- Pollution Degree
- 3
- Flame Retardance
- V1 UL 94
- Protective Treatment
- TH IEC 60068-2-30
- Operating Altitude
- 0...3000 m
- Width
- 334 mm
Ambient Air Temperature For Operation-40-60 °C || 60-70 °C with derating
Climatic WithstandIACS E10
Net Weight7.4 kg
Ambient Air Temperature For Storage-60-80 °C
Ip Degree Of ProtectionIP20 front face IEC 60529
Fire Resistance850 °C IEC 60695-2-1
Depth148 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP060301EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI100405EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- Control Circuit Voltage Limits
- 0.3...0.5 Uc -40-55 °C drop-out AC 50 Hz || 0.8...1.15 Uc -40-55 °C operational AC 50 Hz
- Coil Technology
- built-in bidirectional peak limiting diode suppressor
- Hold-In Power Consumption In Va
- 2-18 VA 20 °C) 0.3 60 Hz || 2-18 VA 20 °C) 0.3 50 Hz
Inrush Power In Va280-350 VA 60 Hz 0.9 20 °C) || 280-350 VA 50 Hz 0.9 20 °C)
Heat Dissipation3-8 W 50/60 Hz
Specifications
- Interlocking Type
- mechanical
- [Ue] Rated Operational Voltage
- power circuit <= 1000 V AC 25...400 Hz || power circuit <= 460 V DC
- Average Impedance
- 0.6 mOhm - Ith 200 A 50 Hz for power circuit
- Mounting Support
- rail || plate
- Standards
- CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508
- Contactor Application
- resistive load
- Product Or Component Type
- changeover contactor
- Irms Rated Making Capacity
- 1260 A at 440 V for power circuit conforming to IEC 60947
- Associated Fuse Rating
- 250 A gG at <= 690 V coordination type 1 for power circuit || 200 A gG at <= 690 V coordination type 2 for power circuit
- Connections - Terminals
- control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end || control circuit screw clamp terminals 1 1-2.5 mm²flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm²flexible without cable end || control circuit screw clamp terminals 1 1-2.5 mm²flexible with cable end || control circuit screw clamp terminals 1 1-2.5 mm²solid without cable end || control circuit screw clamp terminals 2 1-2.5 mm²solid without cable end || power circuit connector 1 10-120 mm²flexible without cable end || power circuit connector 2 10-50 mm²flexible without cable end || power circuit connector 1 10-120 mm²flexible with cable end || power circuit connector 2 10-50 mm²flexible with cable end || power circuit connector 1 10-120 mm²solid without cable end || power circuit connector 2 10-50 mm²solid without cable end
- Pole Contact Composition
- 4 NO
- Utilisation Category
- AC-1 || AC-3 || AC-3e || AC-4
- [Ie] Rated Operational Current
- 200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
- Electrical Durability
- 0.5 Mcycles 250 A AC-1 <= 690 V
- Poles Description
- 4P
- [Ui] Rated Insulation Voltage
- power circuit 600 V CSA || power circuit 600 V UL || power circuit 1000 V IEC 60947-4-1
- Device Short Name
- LC2D
- Protective Cover
- with
[Uc] Control Circuit Voltage220 V AC 50/60 Hz
Power Dissipation Per Pole24 W AC-1
[Ith] Conventional Free Air Thermal Current200 A (at 60 °C) for power circuit
Control Circuit TypeAC 50/60 Hz
Safety Reliability LevelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Rated Breaking Capacity1260 A at 440 V for power circuit conforming to IEC 60947
Product CertificationsUL || CSA || CCC || EAC || UKCA || CB || DNV-GL || RINA || BV || LROS (Lloyds register of shipping)
Product NameTeSys Deca
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947
RangeTeSys
Device Presentationpreassembled with reversing power busbar
Operating Time20...50 ms closing || 6...20 ms opening
Maximum Operating Rate1200 cyc/h 60 °C
Tightening Torquecontrol circuit 1.2 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.2 N.m screw clamp terminals Philips No 2 || power circuit 12 N.m connector hexagonal 4 mm || control circuit 1.2 N.m screw clamp terminals pozidriv No 2
Overvoltage CategoryIII
Mechanical Durability8000000 cycles
[Icw] Rated Short-Time Withstand Current250 A 40 °C - 10 min for power circuit || 550 A 40 °C - 1 min for power circuit || 950 A 40 °C - 10 s for power circuit || 1100 A 40 °C - 1 s for power circuit
