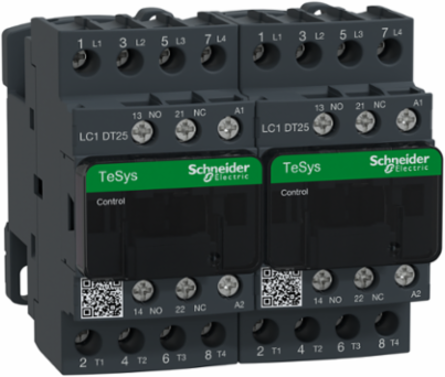

Schneider Electric LC2DT25P7 TeSys Deca Changeover Contactor 4P 25A 230V AC 50/60Hz
Schneider Electric LC2DT25P7 TeSys Deca Changeover Contactor 4P 25A 230V AC 50/60Hz
- MPN: LC2DT25P7
- PPN: SCH-LC2DT25P7
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$595.22/ EA
Description
TeSys D changeover contactor, 4 poles (4NO), for non-inductive load applications up to 25A/690V AC-1. It provides 230V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired changeover power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Mechanical Robustness
- vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor open10 Gn for 11 ms || shocks contactor closed15 Gn for 11 ms
- Height
- 85 mm
- Pollution Degree
- 3
- Flame Retardance
- V1 UL 94
- Protective Treatment
- TH IEC 60068-2-30
- Operating Altitude
- 0...3000 m
- Width
- 90 mm
Ambient Air Temperature For Operation-40-60 °C || 60-70 °C with derating
Climatic WithstandIACS E10 || IEC 60947-1 Annex Q category D
Net Weight0.73 kg
Ambient Air Temperature For Storage-60-80 °C
Ip Degree Of ProtectionIP20 front face IEC 60529
Fire Resistance850 °C IEC 60695-2-1
Depth90 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1501004
- Pvc Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1501004
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectiveCompliant
Complementary
- Non-Overlap Time
- 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
- Control Circuit Voltage Limits
- 0.3...0.6 Uc -40-60 °C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60 °C operational AC 50 Hz || 0.85...1.1 Uc -40-60 °C operational AC 60 Hz
- Inrush Power In Va
- 70-70 VA 60 Hz cos phi 0.75 (at 20 °C) || 70-70 VA 50 Hz cos phi 0.75 (at 20 °C)
- Minimum Switching Voltage
- 17 V for signalling circuit
- Auxiliary Contacts Type
- mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
- Heat Dissipation
- 2-3 W 50/60 Hz
Minimum Switching Current5 mA for signalling circuit
Insulation Resistance> 10 MOhm for signalling circuit
Coil Technologywithout built-in suppressor module
Signalling Circuit Frequency25...400 Hz
Hold-In Power Consumption In Va7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C) || 7-7 VA 50 Hz cos phi 0.3 (at 20 °C)
Specifications
- Product Certifications
- UL || CSA || RINA || GOST || CCC || DNV || LROS (Lloyds register of shipping) || GL || BV || UKCA || CB
- [Uc] Control Circuit Voltage
- 230 V AC 50/60 Hz
- Power Dissipation Per Pole
- 1.56 W AC-1
- Auxiliary Contact Composition
- 1 NO + 1 NC
- Mounting Support
- rail || plate
- Standards
- CSA C22.2 No 60947-4-1 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4
- Contactor Application
- resistive load
- Product Or Component Type
- changeover contactor
- Product Name
- TeSys D || TeSys Deca
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947
- Range
- TeSys || TeSys Deca
- Device Presentation
- preassembled, with prewired power connections
- [Ie] Rated Operational Current
- 25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
- Tightening Torque
- power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || power circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals pozidriv No 2 || power circuit 2.5 N.m screw clamp terminals pozidriv No 2
- Mechanical Durability
- 15 Mcycles
- Operating Time
- 12...22 ms closing || 4...19 ms opening
- [Ui] Rated Insulation Voltage
- power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL
- [Icw] Rated Short-Time Withstand Current
- 30 A 40 °C - 10 min for power circuit || 61 A 40 °C - 1 min for power circuit || 105 A 40 °C - 10 s for power circuit || 210 A 40 °C - 1 s for power circuit || 100 A - 1 s for signalling circuit || 120 A - 500 ms for signalling circuit || 140 A - 100 ms for signalling circuit
Interlocking Typemechanical
[Ue] Rated Operational Voltagepower circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC
Average Impedance2.5 mOhm - Ith 25 A 50 Hz for power circuit
[Ith] Conventional Free Air Thermal Current10 A (at 60 °C) for signalling circuit || 25 A (at 60 °C) for power circuit
Control Circuit TypeAC 50/60 Hz
Safety Reliability LevelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Rated Breaking Capacity250 A at 440 V for power circuit conforming to IEC 60947
Irms Rated Making Capacity250 A at 440 V for power circuit conforming to IEC 60947 || 140 A AC for signalling circuit conforming to IEC 60947-5-1 || 250 A DC for signalling circuit conforming to IEC 60947-5-1
Associated Fuse Rating10 A gG for signalling circuit conforming to IEC 60947-5-1 || 40 A gG at <= 690 V coordination type 1 for power circuit || 25 A gG at <= 690 V coordination type 2 for power circuit
Connections - Terminalspower circuit screw clamp terminals 1 1-4 mm²flexible without cable end || power circuit screw clamp terminals 2 1-4 mm²flexible without cable end || power circuit screw clamp terminals 1 1-4 mm²flexible with cable end || power circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end || power circuit screw clamp terminals 1 1-4 mm²solid || power circuit screw clamp terminals 2 1-4 mm²solid || control circuit screw clamp terminals 1 1-4 mm²flexible without cable end || control circuit screw clamp terminals 2 1-4 mm²flexible without cable end || control circuit screw clamp terminals 1 1-4 mm²flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end || control circuit screw clamp terminals 1 1-4 mm²solid || control circuit screw clamp terminals 2 1-4 mm²solid
Pole Contact Composition4 NO
Utilisation CategoryAC-1
Maximum Operating Rate3600 cyc/h 60 °C
Electrical Durability0.8 Mcycles 25 A AC-1 <= 690 V
Poles Description4P
Overvoltage CategoryIII
Device Short NameLC2D
Protective Coverwith
