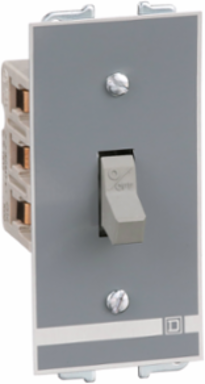

Square D 2510KF2 Manual Motor Switch 30A 3 Pole 10HP at 575VAC NEMA 1 Flush Mount
Square D 2510KF2 Manual Motor Switch 30A 3 Pole 10HP at 575VAC NEMA 1 Flush Mount
- MPN: 2510KF2
- UPC: 785901554448
- PPN: SCH-2510KF2
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$244.23/ EA
Description
2510K manual motor switches are Intended for industrial, commercial and residential applications. These switches are for applications where overload protection is not required or is provided separately. Manual motor switches provide manual On Off control of small motors. They are designed for single or three phase AC motors. This nonreversing manual switches is toggle operated. The maximum operational voltage is 600 VAC and 250 VDC. This three pole switch is rated for 2 HP at 115VAC, 7.5 HP at 230VAC, 10 HP at 460VAC, 10 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 30A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This switch has no pilot light indicator. This NEMA 1 flush mounted unit with a gray flush plate can be mounted in a standard switch box or in a machine cavity without a box. Enclosure is 4.25 inches tall, 2.44 inches wide and 2.75 inches deep. This device is UL Listed and CSA certified.
Specifications
Environment
- Product Certifications
- UL listed file E42243 CCN NLRV || CSA LR25490 class 3211 05
Nema Degree Of Protectionnot rated (flush plate) painted sheet steel standard size
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Not compliant
Pvc FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- Motor Starter Type
- non reversing
- Height
- 4.25 in
- Electrical Connection
- screw clamp terminals
- Awg Gauge
- AWG 14...AWG 10 copper
- Depth
- 2.75 in
- Network Number Of Phases
- 3 phases
- Control Type
- toggle
Local Signallingno indicator
Poles Description3P
[In] Rated Current30 A
Width2.44 in
Motor Power Hp2 hp 115 V AC || 1 hp 90 V DC || 2 hp 115 V DC || 1.5 hp 230 V DC || 7.5 hp 230 V AC || 10 hp 460 V AC || 10 hp 575 V AC
[Ue] Rated Operational Voltage600 V AC || 230 V DC
Specifications
- Range Of Product
- K
Product Or Component TypeSingle Unit Manual Switch
