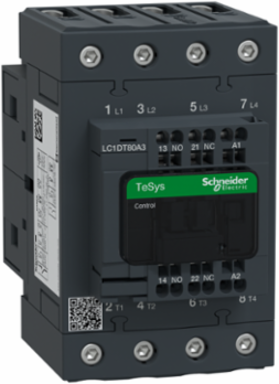

Schneider Electric LC1DT80A3P7 TeSys Deca Contactor 4P 80A 230V AC Coil, Compact Design

MPN: LC1DT80A3P7
PPN: SCH-LC1DT80A3P7
UNSPSC: 39121529

$724.65

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

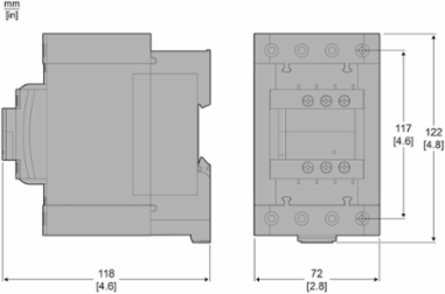

TeSys Deca contactor, 4 poles (4NO), for non-inductive load applications up to 80A/440V AC-1. They can be used to create motor starters for almost any type of application. It provides a 230V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by spring terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (70mm width), DIN-rail mounting or screw fixing. Power contacts have a 80A resistive load rating. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Spring terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.76 inches wide and 4.72 inches deep. It weighs 2.54 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.

Features

New modern look & feel of all machines
Designed to meet the requirements of industrial and HVAC applications
Easier to install and operate with multi-standard screws
With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
Digital customer experience for technical documents
Maintenance guide via EcoStruxureTM Facility Expect

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France
Depth	120 mm

Weight	1150 g

Complementary Attributes

Control Circuit Type	AC 50/60 Hz, AC 50/60 Hz
Uc Control Circuit Voltage	230 V, 230 V AC 50/60 Hz
Irms Rated Making Capacity	140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-11000 A at 440 V for power circuit conforming to IEC 60947
Minimum Switching Current	5 mA for signalling circuit
Rated Breaking Capacity	1000 A at 440 V for power circuit conforming to IEC 60947
Ie Rated Operational Current	80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Uimp Rated Impulse Withstand Voltage	6 kV IEC 60947

Control Circuit Voltage Limits	0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz1...1.1 Uc (60-70 °C):operational AC 50/60 Hz
Ui Rated Insulation Voltage	signalling circuit 600 V CSA, signalling circuit 600 V UL, power circuit 600 V CSA, power circuit 600 V UL, signalling circuit 690 V IEC 60947-1, power circuit 690 V IEC 60947-4-1
Maximum Operating Rate	3600 cyc/h at 60 °C
Minimum Switching Voltage	17 V for signalling circuit
Icw Rated Short Time Withstand Current	640 A 40 °C - 10 s for power circuit900 A 40 °C - 1 s for power circuit110 A 40 °C - 10 min for power circuit260 A 40 °C - 1 min for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit
Ue Rated Operational Voltage	power circuit <= 690 V AC 25...400 Hzpower circuit <= 300 V DC

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Associated Fuse Rating	10 A gG for signalling circuit conforming to IEC 60947-5-1125 A gG at <= 690 V coordination type 1 for power circuit, 125 A gG at <= 690 V coordination type 2 for power circuit
Mechanical Robustness	vibrations contactor open 2 Gn, 5...300 Hz)vibrations contactor closed 4 Gn, 5...300 Hz)shocks contactor closed 15 Gn for 11 ms), shocks contactor open 10 Gn for 11 ms)
Range	TeSys, TeSys Deca
Connections Terminals	power circuit: 2 1-25 mm² - cable stiffness: flexible without cable endpower circuit: 2 1-25 mm² - cable stiffness: flexible with cable endpower circuit: 2 1-25 mm² - cable stiffness: solid without cable endcontrol circuit: spring terminals 1 2.5-2.5 mm² - cable stiffness: flexible without cable end, control circuit: spring terminals 2 2.5-2.5 mm² - cable stiffness: flexible without cable end, power circuit: 1 1-35 mm² - cable stiffness: flexible without cable end, power circuit: 1 1-35 mm² - cable stiffness: flexible with cable end, power circuit: 1 1-35 mm² - cable stiffness: solid without cable end, EverLink BTR screw connectors
Certificate Agency	RINA, CSA, BV, GOST, UL, DNV, LROS (Lloyds register of shipping), GL, CCC
Carbon Footprint Of The Distribution Phase A4	0.5330193797030365, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.1 kg CO2 eq., 0.06943030581471846
Carbon Footprint Of The Use Phase B2 B3 B4 B6	120 kg CO2 eq., 119.76184204865028
Local Publishable Date	2026-06-27
Device Type	LV equipment - LV contactor
Traceability	No
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Coil Technology	without built-in suppressor module
Contact Compatibility	M6
Device Short Name	LC1D
Fire Resistance	850 °C IEC 60695-2-1
Inrush Power In Va	140-140 VA 60 Hz cos phi 0.75 (at 20 °C)160-160 VA 50 Hz cos phi 0.75 (at 20 °C)
Number Of Poles	4P
Overvoltage Category	III
Power Dissipation Per Pole	10.2 W AC-1
Product Or Component Type	contactor
Range Of Product	TeSys Deca
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Software Version	v6.2.4
Total Lifecycle Carbon Footprint	128 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Height Nominal	122 mm
Nbr. Of Units In Pkg.	1
Ith Conventional Free Air Thermal Current	10 A (at 60 °C) for signalling circuit80 A (at 60 °C) for power circuit
Rated Thermal Current Ith	80 A
Functional Unit Description	Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	1331.52

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Insulation Resistance	> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
Mounting Support	rail, plate
Tightening Torque	power circuit 8 N.m EverLink BTR screw connectors 25-35 mm² hexagonal 4 mmpower circuit 5 N.m EverLink BTR screw connectors 2.5-25 mm² hexagonal 4 mm, control circuit 1.7 N.m EverLink BTR screw connectors pozidriv No 2, power circuit 2.5 N.m EverLink BTR screw connectors pozidriv No 2
Control Circuit Voltage	230 V
Non Overlap Time	1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
Carbon Footprint Of The End Of Life Phase C1 To C4	1.6155102246436364, 2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	6 kg CO2 eq., 5.685805895435857
Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1503009EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1926
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Impedance	1.6 mOhm - Ith 80 A 50 Hz for power circuit
Compatibility Code	LC1D
Contactor Application	resistive load
Electrical Durability	1.4 Mcycles 80 A AC-1 <= 440 V
Heat Dissipation	4-5 W at 50/60 Hz
Mechanical Durability	6 Mcycles
Operating Time	4...19 ms opening12...26 ms closing
Pole Contact Composition	4 NO
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protective Treatment	THIEC 60068-2-30
Returnability	No
Signalling Circuit Frequency	25...400 Hz
Sustainable Packaging	Yes
Utilisation Category	AC-1
Rated Thermal Current Hv	80 A
Data Source	extrapolated product
Width Nominal	70 mm
Customs Code	8536490065
Hold In Power Consumption In Va	13-13 VA 60 Hz cos phi 0.3 (at 20 °C)15-15 VA 50 Hz cos phi 0.3 (at 20 °C)
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20
Recyclability Potential In %	62

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Take Back	No
Toxic Heavy Metal Free	Yes
Carbon Footprint	127.66560785424754
Environmental Disclosure	ENVPEP1503009EN
Ip Degree Of Protection	IP20 front face IEC 60529
Packaging Made With Recycled Cardboard	Yes
Permissible Ambient Air Temperature Around The Device	-40-60 °C-40-60 °C60-70 °C with derating
Pep Code	ENVPEP1503009EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Climatic Withstand	IACS E10 exposure to damp heat, IEC 60947-1 Annex Q category D exposure to damp heat
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1503009EN
Eu Rohs Directive	Compliant
Operating Altitude	0...9842.52 ft (0...3000 m)
Packaging Without Single Use Plastic	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2026-03-17
Psr Version	PSR-0005-ed3-2023 06 06
