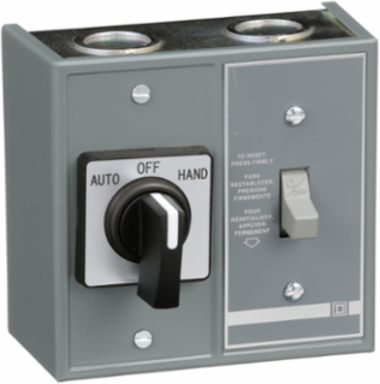

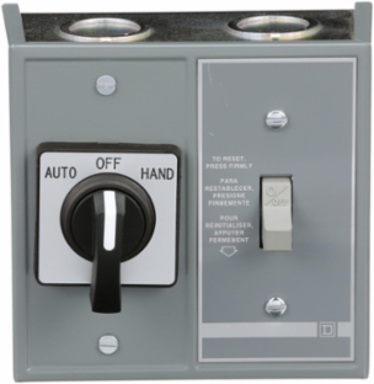

Square D 2510FG71 Duplex Manual Starter 1HP at 277VAC, 16A, NEMA 1, Toggle Switch

MPN: 2510FG71
UPC: 785901554097
PPN: SCH-2510FG71

$401.62

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

2510F fractional horsepower non-reversing manual starters provides manual On-Off control with overload protection for small motors. Designed for fractional single phase motors up to 1 HP. The toggle operator provides an easy manual On-Off control of small motors. These manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. Melting alloy thermal units are used with this manual starter to sense over current conditions. Overload thermal unit is ordered separately to match motor data. This 1 pole nonreversing manual starter has a 16A current rating. Starter has a 1 HP rating at 115, 230, and 277 VAC. This duplex NEMA 1 general purpose enclosure is a surface mounting enclosure. It has a manual starter and a Auto-Off-Hand single pole double throw selector switch. This duplex manual starter is 4.25 inches tall, 2.44 inches wide and 2.88 inches deep. This device is without a pilot light indicator. Manual starter is UL listed and CSA certified.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico, United States, ZZ

Depth	2.88 in

Complementary Attributes

Maximum Horse Power Rating	1 hp 115 V AC, 1 hp 230 V AC, 1 hp 277 V AC

Line Rated Current	16 A

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	UL listed file E42243 CCN NLRV, CSA LR25490 class 3211 05
Carbon Footprint Of The End-of-life Phase [C1 To C4]	1 kg CO2 eq., 1.2179663644743897
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	5 kg CO2 eq., 4.572118033378374
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Awg Gauge	14 AWG...12 AWG copper
Control Type	toggle switch
Energy Efficiency Optimized	False
Motor Starter Type	non reversing
Phase	1 phase
Product Or Component Type	Duplex Unit Manual Starter
Reset	manual
Software Version	v6.2.5-6
Thermal Overload Type	melting alloy
Pep Code	ENVPEP2507018EN
Pep Verification Date	2025-09-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Height Nominal	4.25 in
[Ue] Rated Operational Voltage	277 V AC
Package Weight(Lbs)	780.179 g
Warranty (In Months)	18

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]	0.2254620510662996, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.09334390143668767, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	4 kg CO2 eq., 4.430371808898552
Local Publishable Date	2025-11-13
Stocking Flag	Y
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Cable Entry	0.5" and 0.75" knock-outs (top and bottom)
Electrical Connection	screw clamp terminals
Local Signalling	no indicator
Number Of Poles	1P
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	F
Returnability	No
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	11 kg CO2 eq.
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsTo control, regulate, and protect the installation from overload and short circuits in a circuit with the rated voltage Ue and rated current In during the reference service life of the product of 20 years.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %	74
Width Nominal	2.44 in
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536504000

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	10.539262159254303
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-09-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Take Back	No
Mercury Free	Yes
Environmental Disclosure	ENVPEP2507018EN
Nema Degree Of Protection	NEMA 1 Plastic standard size
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2507018EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
