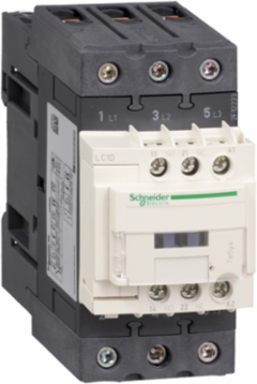

Schneider Electric LC1D40ACD TeSys Deca Contactor 3 Pole 40A 36V DC with Screw Clamp Terminals
Schneider Electric LC1D40ACD TeSys Deca Contactor 3 Pole 40A 36V DC with Screw Clamp Terminals
- MPN: LC1D40ACD
- PPN: SCH-LC1D40ACD
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$475.82/ EA
Description
The Schneider Electric LC1D40ACD TeSys Deca Contactor is a robust solution designed for automation and control applications, providing reliable switching for three-phase AC circuits. Featuring a 40A current rating and 36V DC coil voltage, this contactor can handle significant loads while ensuring consistent performance. Its user-friendly screw clamp terminals facilitate easy and secure wiring, making installation straightforward for panel builders and engineers. With its industrial-grade design, this contactor is an essential component in motor control systems, enhancing the overall efficiency and safety of your operations.
Specifications
- Rated Operational Voltage
- <= 690 V AC, <= 300 V DC
- Motor Power
- 18.5 kW at 380-400 V AC (AC-3)
- Rated Breaking Capacity
- 800 A at 440 V power circuit conforming to IEC 60947
- Irms Rated Making Capacity
- 800 A at 440 V for power circuit conforming to IEC 60947
- Overvoltage Category
- III
- Rated Impulse Withstand Voltage
- 6 kV IEC 60947
- Mechanical Durability
- 10 Mcycles
- Max Operating Rate
- 3600 cyc/h at 60 °C
- Auxiliary Contact Composition
- 1 NO + 1 NC
- Tightening Torque
- 1.7 N.m control circuit, up to 8 N.m power circuit
- Control Circuit Voltage Limits
- 0.1...0.3 Uc drop-out DC, 0.75...1.25 Uc operational DC, -40-70 °C with derating
- Minimum Switching Voltage
- 17 V for signalling circuit
- Insulation Resistance
- > 10 MOhm for signalling circuit
- Height
- 122 mm (4.80 in)
- Depth
- 120 mm (4.72 in)
- Fire Resistance
- 850 °C IEC 60695-2-1
- Compliance
- GOST, UL, CCC, CSA, CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
- PVC Free
- Yes
- Country of Origin
- France
Amperage40 A
Maximum Horse Power Rating30 Hp at 460/480 V AC 50/60 Hz 3 phase motors
Conventional Free Air Thermal Current60 A at 60 °C for power circuit
Rated Insulation Voltage600 V power circuit CSA, UL, IEC 60947
Pollution Degree3
Electrical Durability1.5 Mcycles at 40 A AC-3 <= 440 V
Operating Time42.5...57.5 ms closing, 16...24 ms opening
Pole Contact Composition3 NO
Connections - TerminalsScrew clamp terminals, cable range 1 to 35 mm², flexible and solid, EverLink BTR screw connectors 1-35 mm², hexagonal 4 mm
Coil Voltage36 V DC
Signalling Circuit Frequency25...400 Hz
Minimum Switching Current5 mA for signalling circuit
Mounting SupportRail, Plate
Width55 mm (2.17 in)
Net Weight0.925 kg (2.04 lb)
Flame RetardanceV1 UL 94
RoHS CompliantYes
Mercury FreeYes
