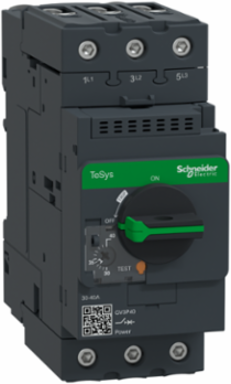

Schneider Electric GV3P40 TeSys Deca Motor Circuit Breaker 3P 40A Thermal-Magnetic
- MPN: GV3P40
- PPN: SCH-GV3P40
CAD
$322.66
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The GV3 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV3PE controls motors with full load currents up to 65 amperes. The manual starter is three pole with horsepower ratings. The manual starter is operated by a rotary handle. The Class 10 ambient compensated thermal over current is adjustable from 30 ampere to 40 ampere. This device has EVERLINK terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
Features
- Engineered as a 3-pole thermal-magnetic motor circuit breaker, this device provides a comprehensive solution for motor control by combining short-circuit protection and thermal overload defense in a single compact unit. By eliminating the need for separate fuses and overloads, you streamline your control panel layout while ensuring your high-torque motors are shielded from catastrophic phase failure and electrical burnout.
- Featuring Schneider Electric s patented EverLink technology, the screw-clamp terminals utilize a spring-reinforced system that maintains a constant pressure on the cables, even in high-vibration environments. This revolutionary design prevents wire "creep" and loose connections over time, significantly reducing the risk of overheating at the terminal and eliminating the need for periodic re-torqueing maintenance.
- Equipped with an accessible rotary dial, you can precisely calibrate the thermal protection to your motor's specific Full Load Amps (FLA) within the 30A to 40A range. This granular control allows industrial engineers to fine-tune protection for 18.5kW to 22kW motors at 400/415V, preventing nuisance tripping while maintaining a rigorous safety ceiling for your heavy-duty mechanical loads.
- With a robust 50kA breaking capacity, this circuit breaker is designed to safely interrupt massive fault currents without damaging the surrounding infrastructure. This high-tier performance ensures your facility meets stringent UL 60947-4-1 and IEC 60947-2 standards, providing peace of mind that your personnel and expensive machinery remain protected during severe electrical faults.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Costa Rica, France, United Kingdom, United States

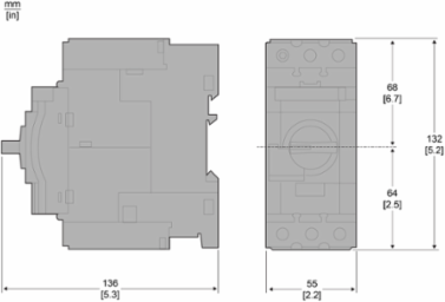

Depth136 mm
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Rated Current
- 40 A
- Maximum Operating Rate
- 25 cyc/h
Line Rated Current40 A
Rated Dutyuninterrupted IEC 60947-4-1
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Fixing Mode
- 35 mm symmetrical DIN rail clipped, panel screwed with 3 x M4 screws)
- Range Of Product
- TeSys GV3, TeSys Deca
- Certificate Agency
- CCC, UL, CSA, EAC, ATEX, LROS (Lloyds register of shipping), BV, ABS, DNV-GL, UKCA
- Carbon Footprint Of The Distribution Phase [A4]
- 0.28544635420228376, 0.3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1 kg CO2 eq., 0.1069344392964876
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 21 kg CO2 eq., 21.070000000000004
- Local Publishable Date
- 2026-07-07
- Stocking Flag
- N
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 3
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Type
- rotary handle
- Device Short Name
- GV3P
- Fire Resistance
- 960 °C IEC 60695-2-11
- Mechanical Durability
- 50000 cycles
- Motor Power Kw
- 18.5-18.5 kW 400/415 V AC 50/60 Hz22-22 kW 500 V AC 50/60 Hz37-37 kW 690 V AC 50/60 Hz
- Network Type
- AC
- Phase Failure Sensitivity
- yes IEC 60947-4-1
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- motor circuit breaker
- Returnability
- Yes
- Suitability For Isolation
- yes IEC 60947-1
- Thermal Protection Adjustment Range
- 30-40 A IEC 60947-2
- Total Lifecycle Carbon Footprint
- 30 kg CO2 eq.
- Utilisation Category
- category A IEC 60947-2AC-3 IEC 60947-4-1
- Pep Code
- ENVPEP0609001EN
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential In %
- 58
- Width Nominal
- 55 mm
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-2
- Package Weight(Lbs)
- 978.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Mounting Positionhorizontal, vertical
Rated Current 140 A
[Ics] Rated Service Short-circuit Breaking Capacity100 % 230/240 V AC 50/60 Hz IEC 60947-2, 100 % 400/415 V AC 50/60 Hz IEC 60947-2, 100 % 440 V AC 50/60 Hz IEC 60947-250 % 500 V AC 50/60 Hz IEC 60947-2, 50 % 690 V AC 50/60 Hz IEC 60947-2
Carbon Footprint Of The End-of-life Phase [C1 To C4]2.5759934932242534, 3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]5 kg CO2 eq., 5.484113459283891
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI060901
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1929
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeGV3P
Device Applicationmotor protection
Electrical Durability50000 cycles AC-3 415 V In
Magnetic Tripping Current560-560 A
Mechanical Robustnessshocks 15 Gn for 11 ms contactor openshocks 30 Gn for 11 ms contactor closedvibrations 4 Gn, 5...300 Hz
Network Frequency50/60 Hz IEC 60947-2
Number Of Poles3P
Power Dissipation Per Pole8 W
Product NameTeSys GV3
RangeTeSys Deca
Software Versionv5.9.4
Sustainable PackagingYes
Tightening Torque5 N.m screw clamp terminal
Trip Unit Technologythermal-magnetic
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect during 20 years the installation against overloads and short-circuits in circuit with 690V and 65A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 3P& 10- Rated breaking capacity 6KA
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh315.36
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal132 mm
[Ith] Conventional Free Air Thermal Current40 A IEC 60947-2
[Ui] Rated Insulation Voltage690 V AC 50/60 Hz IEC 60947-2
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536200020
