Schneider Electric LADN22 TeSys Deca Auxiliary Contact Block, 2NO+2NC, Front Mounting, IP20
Schneider Electric LADN22 TeSys Deca Auxiliary Contact Block, 2NO+2NC, Front Mounting, IP20
- MPN: LADN22
- PPN: SCH-LADN22
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$107.20/ EA
Description

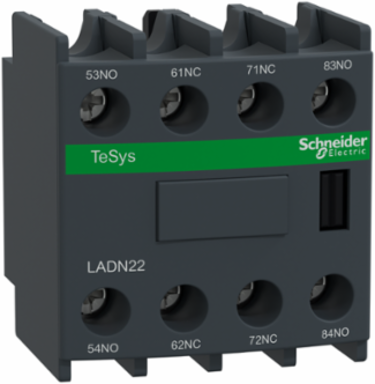

TeSys D instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 2NO+2NC contacts (NC mirror certified) rated up to 10A/690V AC, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Specifications
- Rated Operational Current
- 6 A at 120 V AC-15, 1.04 A at 690 V AC-15, 0.55 A at 125 V DC-13, 0.1 A at 600 V DC-13
- Rated Insulation Voltage
- 690 V IEC 60947-5-1, 600 V UL, 600 V CSA
- Permissible Short-Time Rating
- 100 A 60 °C 1 s, 120 A 60 °C 500 ms, 140 A 60 °C 100 ms
- Minimum Switching Current
- 5 mA
- Non-Overlap Time
- 1.5 ms on energisation and de-energisation, no overlap between NC and NO contacts

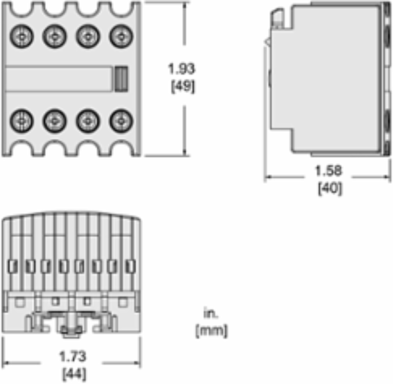

- Height
- 48 mm (1.89 in)
- Depth
- 42 mm (1.65 in)
- Tightening Torque
- 1.7 N.m
- Mounting Location
- Front
- Color
- Dark grey
- Ambient Air Temperature for Operation
- -5 to 60 °C (23 to 140 °F)
- Operating Altitude
- 3000 m (9843 ft)
- Certifications
- CB, UL, CSA, CCC, UKCA
- Country of Origin
- France
- Contact Configuration
- 2 NO + 2 NC
Rated Operational Voltage690 V AC, 25–400 Hz
Rated Making Capacity140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1
Conventional Free Air Thermal Current10 A at 60 °C
Minimum Switching Voltage17 V
Mechanical Durability30 million cycles
Width44 mm (1.73 in)
Net Weight0.05 kg (0.11 lb)
Connection TypeScrew clamp terminals, 1-4 mm² flexible and rigid
MaterialMercury Free, Toxic Heavy Metal Free
IP Degree of ProtectionIP20 IEC 60529
Ambient Air Temperature for Storage-60 to 80 °C (-76 to 176 °F)
StandardsEN/IEC 60947-5-1, GB/T 14048.5
ComplianceRoHS, REACh, Green Premium product
Product TypeAuxiliary contact block
