Schneider Electric DFCC1V TeSys DF Modular Fuse Carrier 1P 30A 600V AC Blown Fuse Indicator

  • MPN: DFCC1V
  • PPN: SCH-DFCC1V
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $68.45

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

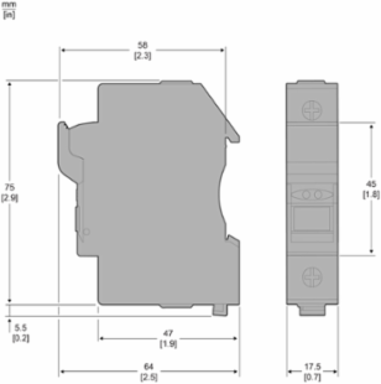

    Description

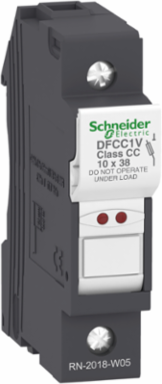

    TeSys DF modular fuse carrier, 1 pole (1P), for protection of control circuits up to 30A/600V, for North American market. To be used with class CC fuse links up to 30A and short circuit current up to 200kA@600V. It provides blown fuse indication by LED. Compact (17.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 12 units. Multi standards certified (UL recognized, CSA).
