TeSys DF Fuse Carrier 3P 50A 690VAC, 14x51mm Fuse Size, Blown Fuse Indicator
Schneider Electric

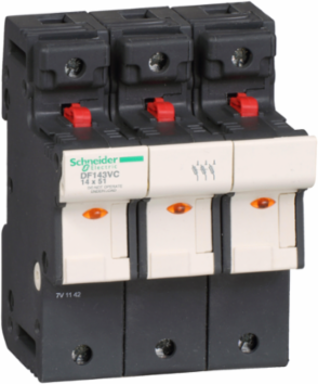

Schneider Electric DF143VC TeSys DF Fuse Carrier 3P 50A 690VAC, 14x51mm Fuse Size, Blown Fuse Indicator

  • MPN: DF143VC
  • PPN: SCH-DF143VC
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $286.09

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 50A/690V. To be used with 14x51mm fuse links with stricker up to 50A and short circuit current up to 120kA@400V. To be equipped with an early break auxiliary contact module DF14AM* (to be ordered separately), it provides blown fuse indication by LED. Compact (79mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links with striker (14x51mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 2 units. Multi standards certified (IEC, UL recognized, CSA, EAC).

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, Tunisia, United States
    Depth76.5 mm

    Physical Attributes

    Fuse Size
    14 x 51 mm

    Important Information Attributes

    Persona Type Ids
    EU, LC, OM, OM8, PB
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Fuse Type
    0-50 A, gG, 0-50 A, aM
    [Ue] Rated Operational Voltage
    690 V AC, 690 V DC
    Short-circuit Withstand
    120 kA 400 V IEC 60947-3, 120 kA 500 V IEC 60947-380 kA 690 V IEC 60947-3
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0 kg CO2 eq., 0.0363
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    4 kg CO2 eq., 3.795
    Local Data Status
    Publishable
    Return Indicator
    N
    Stock Policy
    2
    Serviceability
    No
    Field Service Division
    PPIBS
    Manufacturing Carbon Footprint
    3.795
    Weee Applicability
    Finished product
    Weee Product Category
    5
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    Yes
    Rohs Eur Conformity Date
    1919
    China Rohs In Scope
    No
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Compatibility Code
    DF14
    Device Short Name
    DF14
    Fire Resistance
    960 °C IEC 60695-2-1
    Mounting Position
    vertical +/- 23°)
    Number Of Poles
    3P
    Product Availability
    Non-Stock - Not normally stocked in distribution facility
    Product Or Component Type
    fuse carrier
    Quantity Per Set
    set of 2
    Range Of Product
    TeSys fuse carriers
    Software Version
    EIME v5.8.1
    Tightening Torque
    3.5 N.m
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep Code
    ENVPEP2010021EN
    Pep Verification Date
    2020-10-01
    Psr Version
    PSR-0005-ed2-EN-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    20
    Energy Model - Manufacturing [A1-a3]
    Energy model used: France
    Energy Model - Use [B6]
    Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    Height Nominal
    110.8 mm
    [Ie] Rated Operational Current
    50 A
    [Ui] Rated Insulation Voltage
    690 V AC
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Air Pollution (M3) Manufacturing [A1-a3]
    627
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]
    1.6125
    Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]
    3.795
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
    11.4
    Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
    2.04
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Distribution [A4]
    1.6275
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]
    1.6275
    Water Pollution (M3) Distribution [A4]
    18.9
    Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    Market SegmentationCommercial, Industrial
    Certificate AgencyIEC, UL Recognized, CSA, EAC
    Connections - Terminalsscrew clamp terminals 2 2.5-10 mm²flexible with or without, screw clamp terminals 1 2.5-25 mm²rigid, screw clamp terminals 2 2.5-10 mm²rigidscrew clamp terminals 1 2.5-25 mm²flexible with or without
    Carbon Footprint Of The Distribution Phase [A4]0.12525, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.001005, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]3 kg CO2 eq., 2.775000000000001
    Local Publishable Date2026-06-27
    Stocking FlagY
    Device TypeLV equipment - LV fuse - disconnector
    TraceabilityNo
    Average Life Duration15 year(s)
    End Of Life Carbon Footprint0.0363
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Control Typetoggle
    Energy Efficiency OptimizedFalse
    Local Signallingblown fuse indication
    Mounting Support35 mm symmetrical DIN rail
    Poles Description3P
    Product NameTeSys DF
    Protective TreatmentTH
    RangeTeSys
    ReturnabilityNo
    Sustainable PackagingNo
    Total Lifecycle Carbon Footprint7 kg CO2 eq.
    Fuse Type 9 Fuse TypeaM
    Database Version2016-11
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionProtecting electrical circuits from current surges and guaranteeing the electrical safety of the system for 20 years. Impacts are given for a product unit (“declared unit”).
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh18.9216
    Energy Model - Installation [A5]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    Width Nominal79 mm
    [Ipk] Rated Peak Withstand Current15 kA with tubular links IEC 60269-1
    [Uimp] Rated Impulse Withstand Voltage8 kV
    Package Weight(Lbs)360.000 g
    Warranty (In Months)18
    Air Pollution (M3) End Of Life [C1-c4]3.855
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]0.3735
    Global Warming (Kg.Equivalent.Co2) End Of Life [C1-c4]0.0363
    Net Use Of Fresh Water (M3) Manufacturing [A1-a3]0.0228
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle102.918
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle97.668
    Water Pollution (M3) Manufacturing [A1-a3]1080
    Customs Code8536509045

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Product Compatibility
    DF3EA fuse cartridge striker, DF3EN fuse cartridge strikerDF14AM auxiliary contact block
    Reach Free Shvc
    Yes
    Toxic Heavy Metal Free
    Yes
    Carbon Footprint
    6.7325550000000005
    Environmental Disclosure
    ENVPEP2010021EN
    Ip Degree Of Protection
    IP20 conforming to IEC 60529
    Packaging Without Single Use Plastic
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Pep Verification Date
    2020-10-01
    Psr Version
    PSR-0005-ed2-EN-2016 03 29
    Ambient Air Temperature For Operation-20-60 °C with derating above 20°C, -20-60 °C with derating above 20°C-20-60 °C with derating above 20°C, -20-60 °C with derating above 20°C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Storage-40-80 °C-40-80 °C
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Pep CodeENVPEP2010021EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    fuse carrier
    Range Of ProductTeSys fuse carriers

    ETIM

    ETIM 8
    EC002705
    ETIM 9EC002705

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Similar Products
