TeSys DF Modular Fuse Carrier, 3P, 30A, 600V AC, Blown Fuse Indicator
TeSys DF Modular Fuse Carrier, 3P, 30A, 600V AC, Blown Fuse Indicator
Schneider Electric

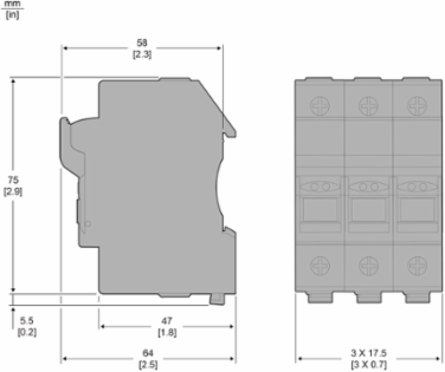

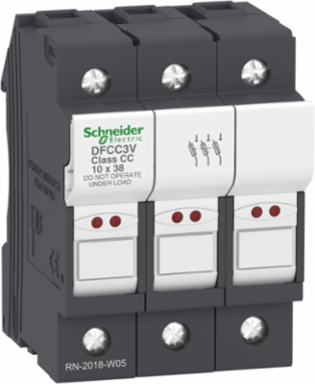

Schneider Electric DFCC3V TeSys DF Modular Fuse Carrier, 3P, 30A, 600V AC, Blown Fuse Indicator

  • MPN: DFCC3V
  • PPN: SCH-DFCC3V
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $203.03

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 30A/690V, for North American market. To be used with class CC fuse links up to 30A and short circuit current up to 200kA@600V. It provides blown fuse indication by LED. Compact (52.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (UL recognized, CSA).

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Germany, France, Mexico, Tunisia, United States
    Depth61 mm

    Important Information Attributes

    Persona Type Ids
    EU, LC, OM, OM8, PB
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Tightening Torque
    2 N.m PZ2, 2 N.m flat Ø 5.5 mm
    Connections - Terminals
    screw clamp terminals 2 1-6 mm²flexible with or withoutscrew clamp terminals 1 1-16 mm²rigid, screw clamp terminals 2 1-6 mm²rigid, screw clamp terminals 1 1-16 mm²flexible with or without
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0 kg CO2 eq., 0.013511666666666665
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    1 kg CO2 eq., 1.4125833333333333
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Serviceability
    No
    Field Service Division
    PPIBS
    Service Catalog Item
    Finished good
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status
    Free of Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Free of Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    Yes
    Tier Id
    2
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Control Type
    toggle padlockable
    Energy Efficiency Optimized
    False
    Fuse Type
    , CC, CC
    Mounting Position
    vertical +/- 23°)
    Number Of Poles
    3P
    Product Availability
    Stock - Normally stocked in distribution facility
    Product Or Component Type
    fuse carrier
    Range
    TeSys
    Returnability
    Yes
    Sustainable Packaging
    No
    Utilisation Category
    AC-20B IEC 60947-3
    Pep Code
    ENVPEP2010021EN
    Pep Verification Date
    2020-10-01
    Psr Version
    PSR-0005-ed2-EN-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    20
    Energy Model - Manufacturing [A1-a3]
    Energy model used: France
    Energy Model - Use [B6]
    Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    Height Nominal
    79.5 mm
    [Ie] Rated Operational Current
    30 A
    [Ui] Rated Insulation Voltage
    600 V AC
    Short-circuit Withstand
    200 kA 600 V UL 512
    Package Weight(Lbs)
    133.000 g
    Warranty (In Months)
    18
    Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    Market SegmentationCommercial, Industrial
    Certificate AgencyUL Recognized, CSA
    Carbon Footprint Of The Distribution Phase [A4]0.04662083333333333, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0003740833333333333, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]3 kg CO2 eq., 2.775000000000001
    Local Publishable Date2026-06-14
    Stocking FlagN
    Device TypeLV equipment - LV fuse - disconnector
    TraceabilityNo
    Average Life Duration15 year(s)
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeYes
    Rohs Eur Conformity Date1919
    China Rohs In ScopeNo
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Compatibility CodeDFCC
    Device Short NameDFCC
    Fire Resistance960 °C IEC 60695-2-1
    Local Signallingblown fuse indication
    Mounting Support35 mm symmetrical DIN rail
    Power Dissipation In W3 W maximum power dissipation by fuse
    Product NameTeSys DF
    Quantity Per Setset of 6
    Range Of ProductTeSys fuse carriers
    Software VersionEIME v5.8.1
    Total Lifecycle Carbon Footprint4 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2016-11
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionProtecting electrical circuits from current surges and guaranteeing the electrical safety of the system for 20 years. Impacts are given for a product unit (“declared unit”).
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime, In Kwh18.9216
    Energy Model - Installation [A5]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    Width Nominal52.5 mm
    [Ue] Rated Operational Voltage600 V AC
    [Uimp] Rated Impulse Withstand Voltage6 kV
    Nbr. Of Units In Pkg.1
    Take-backNo
    Water Pollution (M3) Manufacturing [A1-a3]402

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Ambient Air Temperature For Storage
    -40-70 °C-40-70 °C
    Eu Rohs Directive
    Compliant
    Operating Altitude
    0...6561.68 ft (0...2000 m) without derating
    Packaging Without Single Use Plastic
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Pep Verification Date
    2020-10-01
    Psr Version
    PSR-0005-ed2-EN-2016 03 29
    Ambient Air Temperature For Operation-40-70 °C with derating above 20°C, -40-70 °C with derating above 20°C-40-70 °C with derating above 20°C, -40-70 °C with derating above 20°C
    Reach Free ShvcYes
    Toxic Heavy Metal FreeYes
    Carbon Footprint4.248089916666668
    Environmental DisclosureENVPEP2010021EN
    Ip Degree Of ProtectionIP20
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Pep CodeENVPEP2010021EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    fuse carrier
    Range Of ProductTeSys fuse carriers

    ETIM

    ETIM 8
    EC002705
    ETIM 9EC002705

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
