TeSys DF Modular Fuse Carrier 1P 50A 690V Fuse Size 14x51mm
Schneider Electric

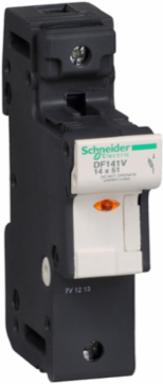

Schneider Electric DF141V TeSys DF Modular Fuse Carrier 1P 50A 690V Fuse Size 14x51mm

  • MPN: DF141V
  • PPN: SCH-DF141V
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $203.03

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    TeSys DF modular fuse carrier, 1 pole (1P), for protection of control circuits up to 50A/690V. To be used with 14x51mm fuse links up to 50A and short circuit current up to 120kA@400V. It provides blown fuse indication by LED. Compact (26.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links (14x51mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (IEC, UL recognized, CSA, EAC).

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, Tunisia
    Depth76.5 mm

    Physical Attributes

    Fuse Size
    14 x 51 mm

    Important Information Attributes

    Persona Type Ids
    EU, LC, OM, OM8, PB
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Fuse Type
    0-50 A, aM, 0-50 A, gG
    [Ue] Rated Operational Voltage
    690 V AC, 690 V DC
    Short-circuit Withstand
    120 kA 400 V IEC 60947-3, 120 kA 500 V IEC 60947-380 kA 690 V IEC 60947-3
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0 kg CO2 eq., 0.011898333333333334
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    1 kg CO2 eq., 1.2439166666666668
    Local Data Status
    Publishable
    Return Indicator
    N
    Stock Policy
    2
    Serviceability
    No
    Field Service Division
    PPIBS
    Use Carbon Footprint
    0.925
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status
    Free of Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Free of Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    Yes
    Tier Id
    2
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Control Type
    toggle
    Energy Efficiency Optimized
    False
    Local Signalling
    blown fuse indication
    Mounting Support
    35 mm symmetrical DIN rail
    Poles Description
    1P
    Product Name
    TeSys DF
    Protective Treatment
    TH
    Range
    TeSys
    Returnability
    No
    Sustainable Packaging
    No
    Total Lifecycle Carbon Footprint
    2 kg CO2 eq.
    Fuse Type 9 Fuse Type
    gG
    Database Version
    2016-11
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    Protecting electrical circuits from current surges and guaranteeing the electrical safety of the system for 20 years. Impacts are given for a product unit (“declared unit”).
    Functional-unit Unit
    Unit
    Energy Model - Manufacturing [A1-a3]
    Energy model used: France
    Energy Model - Use [B6]
    Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    Height Nominal
    110.8 mm
    [Ie] Rated Operational Current
    50 A
    [Ui] Rated Insulation Voltage
    690 V AC
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Air Pollution (M3) Operational Energy Use [B6]
    39.8
    Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]
    0.925
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
    3.45
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    16.1
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    16.1
    Water Pollution (M3) Manufacturing [A1-a3]
    354
    Water Pollution (M3) Operational Energy Use [B6]
    38.2
    Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    Market SegmentationCommercial, Industrial
    Certificate AgencyIEC, UL Recognized, CSA, EAC
    Connections - Terminalsscrew clamp terminals 2 2.5-10 mm²flexible with or without, screw clamp terminals 1 2.5-25 mm²rigid, screw clamp terminals 2 2.5-10 mm²rigidscrew clamp terminals 1 2.5-25 mm²flexible with or without
    Carbon Footprint Of The Distribution Phase [A4]0.04105416666666667, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0003294166666666667, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0.9 kg CO2 eq., 0.925
    Local Publishable Date2026-06-27
    Stocking FlagY
    Device TypeLV equipment - LV fuse - disconnector
    TraceabilityNo
    Average Life Duration15 year(s)
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeYes
    Rohs Eur Conformity Date1919
    China Rohs In ScopeNo
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Compatibility CodeDF14
    Device Short NameDF14
    Fire Resistance960 °C IEC 60695-2-1
    Mounting Positionvertical +/- 23°)
    Number Of Poles1P
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Product Or Component Typefuse carrier
    Quantity Per Setset of 6
    Range Of ProductTeSys fuse carriers
    Software VersionEIME v5.8.1
    Tightening Torque3.5 N.m
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep CodeENVPEP2010021EN
    Pep Verification Date2020-10-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Installation [A5]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    Width Nominal26.5 mm
    [Ipk] Rated Peak Withstand Current15 kA with tubular links IEC 60269-1
    [Uimp] Rated Impulse Withstand Voltage8 kV
    Package Weight(Lbs)118.000 g
    Warranty (In Months)18
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]10.5
    Net Use Of Fresh Water (M3) Operational Energy Use [B6]3.36
    Radioactive Waste Disposed Of (Kg) Operational Energy Use [B6]0.0023
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]2.35
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]2.35
    Water Pollution (M3) Distribution [A4]6.195
    Customs Code8536509045

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Product Compatibility
    DF2EA fuse cartridge, DF2EN fuse cartridge
    Reach Free Shvc
    Yes
    Toxic Heavy Metal Free
    Yes
    Carbon Footprint
    2.2221985833333338
    Environmental Disclosure
    ENVPEP2010021EN
    Ip Degree Of Protection
    IP20 conforming to IEC 60529
    Packaging Without Single Use Plastic
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Pep Verification Date
    2020-10-01
    Psr Version
    PSR-0005-ed2-EN-2016 03 29
    Ambient Air Temperature For Operation-20-60 °C with derating above 20°C, -20-60 °C with derating above 20°C-20-60 °C with derating above 20°C, -20-60 °C with derating above 20°C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Storage-40-80 °C-40-80 °C
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Pep CodeENVPEP2010021EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    fuse carrier
    Range Of ProductTeSys fuse carriers
