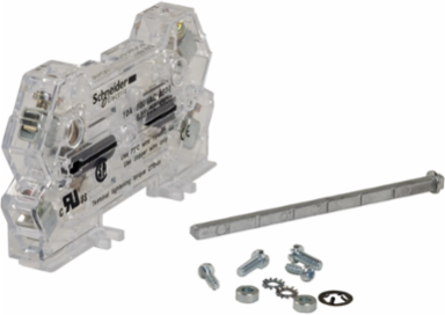

Schneider Electric GS1AN11 TeSys GS Auxiliary Contact Block 1NC+1NO Instantaneous, 0.132 kg
- MPN: GS1AN11
- PPN: SCH-GS1AN11
CAD
$112.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys GS instantaneous auxiliary contact block for all 3-pole and 4-pole 50-1250A IEC and 30-800A UL fuse switch-disconnectors GS2D, GS2E, GS2F, GS2G, GS2J, GS2K, GS2L, GS2M, GS2N, GS2P, GS2Q, GS2S, GS2T, GS2V. It provides 1NC+1NO contacts rated up to 4A/48V DC-13 and 10A/230V AC-15, for I/O position signaling. Right-hand side mounting and connection by screw terminals. Multi standards certified (IEC, UL), it conforms to RoHS/REACh regulation.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- TeSys
- Product Or Component Type
- auxiliary contact
- Contacts Type And Composition
- 1 NC + 1 NO
- Contact Operation
- instantaneous
[Ith] Conventional Free Air Thermal Current20 A (at 40 °C)
Contact ApplicationO and I position signalling
[Ie] Rated Operational Current1 A 220 V DC-13 || 10 A 230 V AC-15 || 12 A 127 V AC-15 || 4 A 48 V DC-13 || 6 A 440 V AC-15 || 8 A 400/415 V AC-15 || 1.2 A 110 V DC-13
Device Short NameGS1AN
Complementary
- Type Of Operating Handle
- direct frontal || direct right side || external right side || external frontal
- Net Weight
- 0.132 kg
- Fuse Type
- NFC || DIN || BS
- [In] Rated Current
- 1250 A || 160 A || 400 A || 50 A || 63 A || 800 A || 250 A || 315 A || 600 A || 125 A || 100 A || 60 A || 200 A || 630 A
Range CompatibilityTeSys TeSys GS switch-disconnector-fuse
Electrical Durability30000 cycles AC-15
Mechanical Durability30000 cycles
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2003007EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI2003007EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectiveCompliant
Contractual warranty
- Warranty
- 18 months
