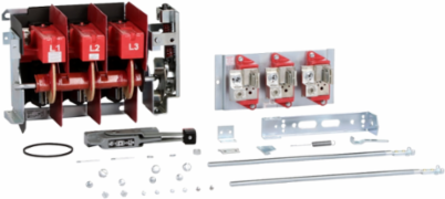

Square D 9422ATF12 Flange-Mounted Disconnect Switch 200A 600V, 6 Inch Handle, NEMA 4

MPN: 9422ATF12
UPC: 785901120292
PPN: SCH-9422ATF12

$3120.58

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Type T disconnect switches are designed for variable depth, flange-mounting applications. These switches are fully compatible with 9422 handle operators and 9423 door closing mechanisms. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This 200A disconnect switch and operating mechanism has 40 HP at 200 VAC, 60 HP at 230 Vac, 125 HP at 460 VAC and 150 HP at 575 VAC. Fuse clip ratings of 200A are for Classh, J, K and R fuses only. This overpacked disconnect switch and operating mechanism includes a 9422A1 handle mechanism. Disconenct switch is UL component recognized and CSA certified. Switch is also rated for 40 HP at 250 VDC and 50 HP at 600 VDC when using two poles. 9422A1 operating handle is overpacked with this disconnect switch. Disconnect switch lugs are rated for 6 AWG to 300 kcmil with copper or aluminum wire. Disconnect switch is UL Component Recognized and CSA certified

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Complementary Attributes

Line Rated Current	200 A

Maximum Horse Power Rating	40 hp 200 V AC60 hp 230 V AC125 hp 460 V AC150 hp 575 V AC40 hp 250 V DC

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Fuse Type	R, H, K, J
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Disconnector Device Type	fusible disconnect switch
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	Disconnect Switch
Range Of Product	9422T
Sustainable Packaging	No
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536509045

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Certificate Agency	CSA, UL Recognized
Local Publishable Date	2026-07-07
Stocking Flag	N
Device Type	LV equipment - LV fuse - switch
Traceability	No
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2541
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Associated Fuse Rating	200 A 250/600 V
Energy Efficiency Optimized	False
Product Mounting	flange rod variable depth
Provided Equipment	6 in handle included NEMA 1/3/3R/4 enclosures sheet steel
Returnability	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Package Weight(Lbs)	12.868 kg
Warranty (In Months)	18

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
