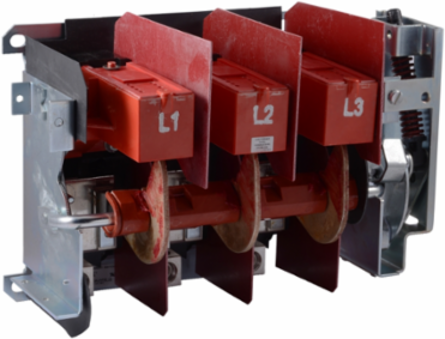

Square D 9422TFB2 200A Flange-Mounted Disconnect Switch with 6 Inch Handle, CSA & UL Certified

MPN: 9422TFB2
UPC: 785901043782
PPN: SCH-9422TFB2

$3280.66

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Bracket mount disconnect switches are designed for combiner boxes and control panel applications. The bracket mount disconnect switch is shipped with the switch and external handle assembled to a bracket, ready for quick installation. A protective trim plate is provided to prevent any mounting screws from being accessible from the front. These switches are fully compatible with the 9423 closing mechanisms. This disconnect switch will accept Class H, J, K or R fuses only. This bracket mount mount disconnect switch is rated at 200 A. Disconnect switch has horsepower ratings of 40 HP at 208 VAC, 60 HP at 240 VAC, 125 HP at 480 VAC and 150 HP at 600 VAC. Switch is also rated for 40 HP at 600 VDC. Switch is UL component recognized and CSA certified.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Complementary Attributes

Line Rated Current	200 A

Maximum Horse Power Rating	40 hp 200 V AC60 hp 230 V AC125 hp 460 V AC150 hp 575 V AC40 hp 250 V DC

Important Information Attributes

Persona Type Ids	EU, LC, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Fuse Type	K, R, J, H
Local Data Status	Publishable
Return Indicator	N
Device Type	LV equipment - LV fuse - switch
Traceability	No
Weee Product Category	5
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Disconnector Device Type	fusible disconnect switch
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	Disconnect Switch
Range Of Product	9422T
Sustainable Packaging	No
Package Weight(Lbs)	12.788 kg
Warranty (In Months)	18

Persona Type Names	End User, Contractor, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Certificate Agency	CSA, UL Recognized
Local Publishable Date	2026-06-27
Stocking Flag	Y
Serviceability	No
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2541
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Associated Fuse Rating	200 A 250/600 V
Energy Efficiency Optimized	False
Product Mounting	bracket fixed depth
Provided Equipment	6 in handle included
Returnability	No
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536509045

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
