Square D 9422TC33 Flange Mounted Variable Depth Disconnect Switch, 30A, 600V, Fuse Type H/K/J/R
- MPN: 9422TC33
- UPC: 785901858454
- PPN: SCH-9422TC33
CAD
$146.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

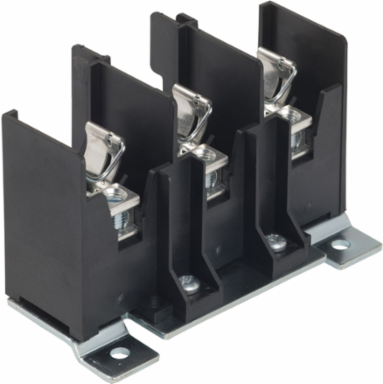

9422ATCF disconnect switches are designed for control panel installations. These disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This replacement fuse clip kit is for 9422TCF30, 9422TCN30, 9422TCF33 and 9422TDN60 flange mounted variable depth discoonect switches. This fuse clip kit will accept Class H, J, K or R fuses only. It has a ratings of 30A and 60A up to 600 V depending on which disconnect switch it is used with. Disconnect switch lugs are rated for 14 to 2 AWG with copper wire and 10 to 2 with aluminum wire. Disconnect switch is UL Component Recognized and CSA certified
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Complementary Attributes
- Maximum Horse Power Rating
- 7.5 hp 200 V AC, 7.5 hp 230 V AC15 hp 460 V AC20 hp 575 V AC, 5 hp 250 V DC
Line Rated Current30 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Fuse Type
- R, K, H, J
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Traceability
- No
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Disconnector Device Type
- fusible disconnect switch
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Provided Equipment
- ordered separately
- Returnability
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Package Weight(Lbs)
- 467.2 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyCSA, UL Recognized
Local Publishable Date2026-06-27
Stocking FlagY
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1920
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Associated Fuse Rating60 A 250 V30 A 600 V
Energy Efficiency OptimizedFalse
Product Or Component TypeDisconnect Switch
Range Of Product9422T
Sustainable PackagingNo
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- Disconnect Switch
- Range Of Product
- 9422T
Provided Equipmentordered separately
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
