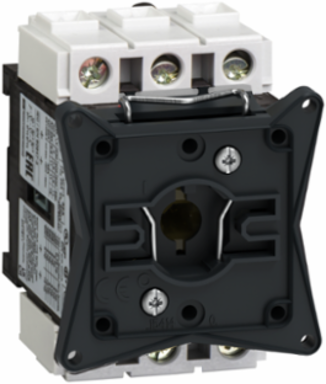

Schneider Electric V1 TeSys Vario Switch Body 3 Poles 32A 690V IP20
- MPN: V1
- PPN: SCH-V1
CAD
$73.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
V1 is a 3-pole switch body for TeSys Vario switch-disconnector from Schneider Electric. Rated 32A 690V, it is used in motor applications up to 11kW@400V AC-23. To be equipped with an handle and extension shaft to form a main or emergency stop switch-disconnector. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) can complete the assembly. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
