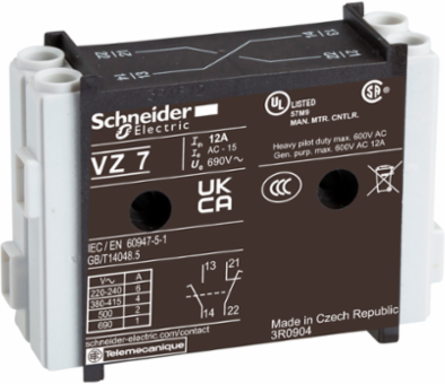

Schneider Electric VZ7 TeSys Vario Auxiliary Contact Block 1 NO + 1 NC, 12A/690V, IP20, 48.5 mm Depth
- MPN: VZ7
- PPN: SCH-VZ7
CAD
$32.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
VZ7 is an add-on auxiliary contact module for TeSys Vario switch-disconnectors from Schneider Electric. To be used with V02 to V6 switch bodies, mounted on one side of the switch body. It includes 1NO+1NC contacts (late make NO, early break NC) rated for AC operation until 690V and DC operation until 250V. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC). Multi standards certified (IEC, UL, CSA, CCC, EAC).
Features
- Custom-engineered to add signaling and control-loop capabilities, this module functions as an add-on auxiliary contact block. It physically mounts onto a primary load-break switch body to provide reliable, mechanical status feedback that mirrors the position of the main power poles, allowing you to feed status updates directly to a central PLC or safety interlock system.
- Belonging to the heavy-duty TeSys Vario and Mini-Vario product lines, this module is engineered for universal side-mounting (left or right side). It clips directly onto the master switch-disconnector frames, making it fully compatible with Vario switch bodies V02 through V6 (ranging from 12A to 175A models) without increasing the depth of the enclosure layout.
- The block is configured with a 1 NO (Normally Open) + 1 NC (Normally Closed) contact set featuring specialized late-make NO and early-break NC mechanics. When the main switch handle is rotated to shut off equipment, the early-break NC contact opens a split second before the main power poles separate, safely dropping out upstream magnetic contactors and suppressing heavy electrical arcing before the physical disconnect occurs.
- Built for high-performance control environments, the auxiliary contacts carry an insulation rating of 690 V AC (50/60 Hz) with an 8 kV impulse withstand voltage. The contacts possess a conventional free-air thermal current of 12 Amps, comfortably piloting standard AC-15 command loops (up to 100,000 cycles) and DC-11 signaling grids (up to 30,000 cycles).
- Featuring an IP20 finger-safe environmental rating, the module incorporates robust screw-clamp terminals that accept solid copper wires up to 2.5 mm2 and torque down cleanly at 0.7 N m. The ultra-compact 20mm-wide assembly carries full UL, CSA, CE, UKCA, and GL safety approvals, ensuring your complete motor control panel or machinery disconnect station satisfies all local electrical inspection codes.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Costa Rica, Czechia, Germany, France, United States |
|---|
| Depth | 48.5 mm |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Mounting Location | left, right |
| Contacts Composition | 1 NO + 1 NC |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0077414, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.02626, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 0.5 kg CO2 eq., 0.49937 |
| Local Publishable Date | 2026-06-27 |
| Stocking Flag | N |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Compatibility Code | auxiliary contact |
| Contacts Type And Composition | 1 NO + 1 NC |
| Electrical Durability | 30000 cycles DC-11100000 cycles AC-15 |
| Mechanical Durability | 100000 cycles |
| Performance Level | high performance |
| Product Or Component Type | auxiliary contact block |
| Range | TeSys |
| Software Version | v5.9.4 |
| Tightening Torque | 0.7-0.7 N.m screw clamp terminals |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 690V and rated current 12A ensuring isolation characterized by rated voltage 8KV. This function is provided for 20 years. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; CZ |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; FR |
| Recyclability Potential In % | 35 |
| Width Nominal | 20 mm |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Halogen-free Status | Halogen free product |
| Package Weight(Lbs) | 52.000 g |
| Warranty (In Months) | 18 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 95.892 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D] | -1.4992 |
| Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6] | 3.5267 |
| Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 1.6417 |
| Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3] | 1.9734 |
| Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D] | -0.4125 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4] | 0.108 |
| Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4] | 3.274 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 8.8655 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 95.892 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] | -1.4992 |
| Customs Code | 8536509025 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Network Type | AC, DC |
| Certificate Agency | GL, CSA, UL, UKCA |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.13304 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.3 kg CO2 eq., 0.33685 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Traceability | No |
| Service Catalog Item | Finished good |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1926 |
| China Rohs In Scope | No |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contact Operation | late-make 1 NOearly-break 1 NC |
| Device Short Name | VZ |
| Fire Resistance | 960 °C IEC 60695-2-1 |
| Network Frequency | 50/60 Hz |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | TC |
| Returnability | Yes |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 1 kg CO2 eq. |
| Pep Code | ENVPEP2211001EN |
| Pep Verification Date | 2025-10-20 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | referent product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; FR |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; FR |
| Height Nominal | 65 mm |
| [Ith] Conventional Free Air Thermal Current | 12 A |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz |
| Connections - Terminals | screw clamp terminals 2 0.75-1.5 mm² flexible - with cable endscrew clamp terminals 2 1-2.5 mm² solid |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] | 5.45 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4] | 3.2698 |
| Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3] | 113.82 |
| Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D] | -2.18 |
| Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D] | -1.1945 |
| Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6] | 12.944 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] | 5.6769 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 104.76 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D] | -1.6153 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 4.6859 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4] | 3.2698 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 8.8655 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Product Compatibility | V2, V5, V02, V6, V1, V4, V01, V0, V3 |
| Halogene Performance | Halogen free product |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2211001EN |
| Halogen Content Performance | Halogen free product |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-10-20 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Operation | -20-50 °C, -20-50 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 1.0032614 |
| Eu Rohs Directive | Compliant By Exemption |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2211001EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | auxiliary contact block |
|---|
ETIM
| ETIM 8 | EC000041 |
|---|
| ETIM 9 | EC000041 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
