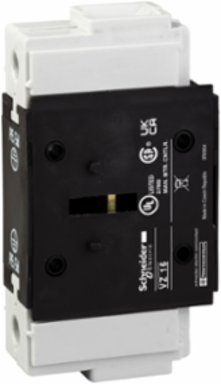

Schneider Electric VZ15 TeSys Vario Additional Earthing Block 80A 690V IP20
- MPN: VZ15
- PPN: SCH-VZ15
CAD
$41.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
VZ15 is an add-on earthing module for TeSys Vario switch-disconnector from Schneider Electric. Rated 63A to 80A 690V, to be used with V3 and V4 switch bodies. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC). Multi standards certified (IEC, UL, CSA, CCC, EAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France
Depth46 mm
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mechanical Robustness
- vibrations 10...150 Hz 5 gn) IEC 60068-2-6, shocks 11 ms 15 gn) IEC 60068-2-27
- Network Type
- DC, AC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.007846013513513512, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.02661486486486486, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0.5 kg CO2 eq., 0.4993700000000001
- Local Publishable Date
- 2025-12-03
- Stocking Flag
- N
- Device Type
- LV equipment - LV fuse - switch
- Traceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1936
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contacts Type And Composition
- without
- Energy Efficiency Optimized
- False
- Network Frequency
- 50/60 Hz
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TC
- Returnability
- Yes
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 690V and rated current 12A ensuring isolation characterized by rated voltage 8KV. This function is provided for 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; CZ
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential, In %
- 35
- Width Nominal
- 20 mm
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Connections - Terminals
- screw clamp terminals
- Package Weight(Lbs)
- 79.0 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mounting Locationleft, right
Certificate AgencyUL, CSA, GL, UKCA
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.13483783783783782
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.341402027027027
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Compatibility Codeearthing module
Device Short NameVZ
Fire Resistance960 °C IEC 60695-2-1
Performance Levelhigh performance
Product Or Component Typeadditional earthing block
RangeTeSys
Software Versionv5.9.4
Total Lifecycle Carbon Footprint1 kg CO2 eq.
Pep CodeENVPEP2211001EN
Pep Verification Date2025-06-18
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal83 mm
[Ith] Conventional Free Air Thermal Current80 A
[Uimp] Rated Impulse Withstand Voltage6 kV
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Product Compatibility
- V3, V4
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 1.0100707432432432
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-18
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Operation-20-50 °C, -20-50 °C
Take BackNo
Mercury FreeYes
Environmental DisclosureENVPEP2211001EN
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2211001EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- additional earthing block
ETIM
- ETIM 8
- EC002498
ETIM 9EC002498
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
