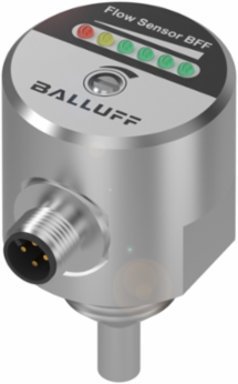

Balluff BFF T7031-HA001-D06A2A-S4 Thermal Flow Controller, -20...80 C Media Temp, 100 bar Max Pressure, IP67
- MPN: BFF T7031-HA001-D06A2A-S4
- PPN: BAL-BFF0001
CAD
$948.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Thermal Flow Controller, -20...80 C Media Temp, 100 bar Max Pressure, IP67
Documentation & Downloads
Specifications
Additional
| Pressure Rating Max. | 100 bar |
|---|---|
| Operating Range | 1...150 cm/s aqueous media; 3...300 cm/s oil |
| Ambient Temperature | -20...80 C |
| Process Connection | G 1/2" outer |
| Material | 1.4571 stainless steel, 1.4305 stainless steel (housing); 1.4571 stainless steel (process connection); AFM 34 (gasket) |
| IP Rating | IP67 |
| Country of Origin | Germany |
| Operating Voltage | 20...28 VDC |
|---|---|
| Media Temperature | -20...80 C |
| Installation Length from Contact Surface | 31 mm |
| Connection | Connector, M12x1-Male, 4-pin |
| Switching Output | PNP |
| Approval/Conformity | CE; cULus; UKCA; WEEE |
