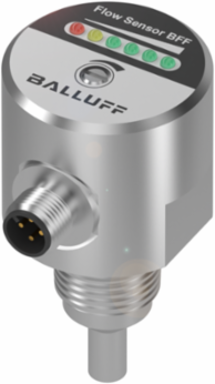

Balluff BFF T7040-JA001-D06A2A-S4 Thermal Flow Controller, 40 mm Length, 100 bar Pressure Rating, Stainless Steel Housing
- MPN: BFF T7040-JA001-D06A2A-S4
- PPN: BAL-BFF0003
CAD
$948.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Thermal Flow Controller, 40 mm Length, 100 bar Pressure Rating, Stainless Steel Housing
Documentation & Downloads
Specifications
Additional
| Operating voltage | 20...28 VDC |
|---|---|
| Installation length from contact surface | 40 mm |
| Connection | Connector, M12x1-Male, 4-pin |
| Operating range | 1...150 cm/s aqueous media; 3...300 cm/s oil |
| Housing material | 1.4571 stainless steel; 1.4305 stainless steel |
| Approval/Conformity | CE; cULus; UKCA; WEEE |
| Country of Origin | Germany |
| Pressure rating max. | 100 bar |
|---|---|
| Process connection | NPT 1/2" outer |
| Ambient temperature | -20...80 C |
| Media temperature | -20...80 C |
| Process connection material | 1.4571 stainless steel |
| IP rating | IP67 |
| Switching output | PNP |
