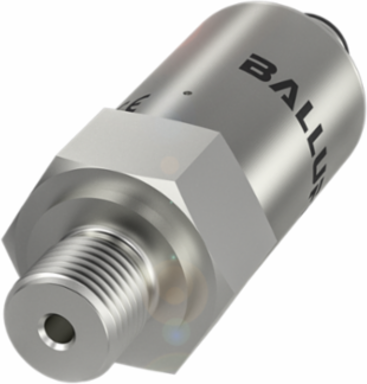

Balluff BSP B250-DV004-A06A1A-S4 Pressure Sensor 0-250 Bar, IP67, Stainless Steel Housing
- MPN: BSP B250-DV004-A06A1A-S4
- PPN: BAL-BSP00H5
CAD
$273.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Pressure Sensor 0-250 Bar, IP67, Stainless Steel Housing
Documentation & Downloads
Specifications
Additional
| Pressure Range | 0...250 bar |
|---|---|
| Analog Output | Current 4...20 mA |
| Burst Pressure | 750 bar |
| Ambient Temperature | -25...85 C |
| Process Connection | G 1/4" (DIN 3852) |
| Material | 1.4301 stainless steel |
| Process Connection Material | 1.4301 stainless steel |
| Ingress Protection | IP67 |
| Country of Origin | Germany |
| Operating Voltage | 8...32 VDC |
|---|---|
| Overload Pressure | 400 bar |
| Accuracy | 0.5 % FSO BFSL |
| Media Temperature | -40...125 C |
| Connection | Connector, M12x1 Male, 4-pin |
| Housing Material | 1.4301 stainless steel |
| Gasket Material | Fluoroelastomer |
| Approval | CE; UKCA; cULus; WEEE |
