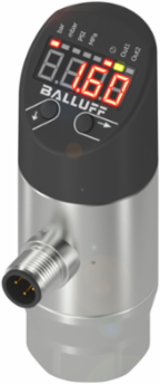

Balluff BSP B400-EV009-P00S2B-S4 Pressure Sensors, 0-400 Bar, IP67, Analog Output 4-20 mA/0-10 V
- MPN: BSP B400-EV009-P00S2B-S4
- PPN: BAL-BSP00YH
CAD
$603.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Pressure Sensors, 0-400 Bar, IP67, Analog Output 4-20 mA/0-10 V
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 18...30 VDC |
|---|---|
| Overload Pressure | 650 bar |
| Accuracy | 0.5% FSO BFSL |
| Media Temperature | -40...125 C |
| Connection | Connector, M12x1-Male, 4-pin |
| Process Connection Material | 1.4301 stainless steel |
| Gasket Material | Fluoroelastomer |
| Switching Output | 2x PNP/NPN NO/NC switchable |
| Approval/Conformity | CE; UKCA; cULus; WEEE |
| Pressure Range | 0...400 bar |
|---|---|
| Burst Pressure | 1000 bar |
| Output Signal | Analog, voltage/current selectable 4-20 mA/0-10 V |
| Ambient Temperature | -40...85 C |
| Process Connection | G 1/4" (DIN 3852) |
| Housing Material | 1.4301 stainless steel; PE, High-density polyethylene |
| Ingress Protection | IP67 (when threaded in) |
| Interface | IO-Link 1.1 |
| Country of Origin | Germany |
