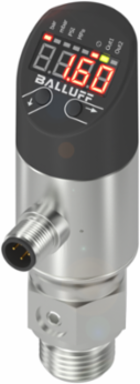

Balluff BSP B002-IV009-P00S2B-S4 Front Flush Pressure Sensor, 0...2 bar, -40...125 C, IP67
- MPN: BSP B002-IV009-P00S2B-S4
- PPN: BAL-BSP00Z4
CAD
$846.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Front Flush Pressure Sensor, 0...2 bar, -40...125 C, IP67
Documentation & Downloads
Specifications
Additional
| Pressure Range | 0 to 2 bar |
|---|---|
| Accuracy | B1 0.5% FSO BFSL |
| Burst Pressure | 15 bar |
| Ambient Temperature | -40 to 85 B0C |
| Process Connection | G 1/2" (DIN 3852) front-flush |
| Mounting Style | Front Flush |
| Analog Output | Selectable 4-20 mA / 0-10 V voltage/current |
| Gasket Material | Fluoroelastomer |
| Housing Material | 1.4301 stainless steel; PE, high-density polyethylene |
| Country of Origin | Germany |
| Operating Voltage | 18 to 30 VDC |
|---|---|
| Overload Pressure | 10 bar |
| Media Temperature | -40 to 125 B0C |
| IP Rating | IP67 (when threaded in) |
| Connection | Connector, M12x1-Male, 4-pin |
| Switching Output | 2x PNP/NPN NO/NC switchable |
| Interface | IO-Link 1.1 |
| Process Connection Material | 1.4404 stainless steel |
| Approval/Conformity | CE, UKCA, cULus, WEEE |
